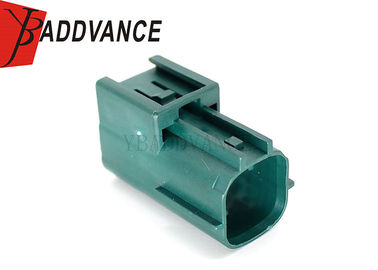

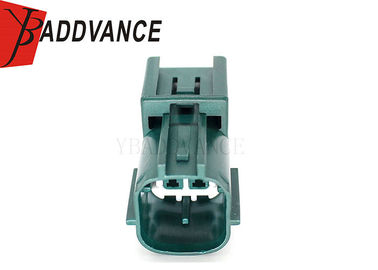

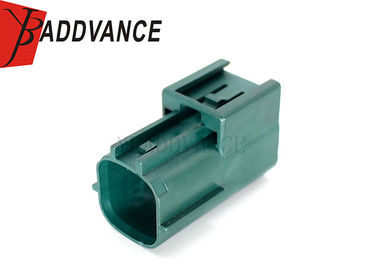

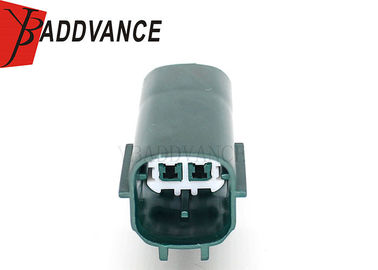

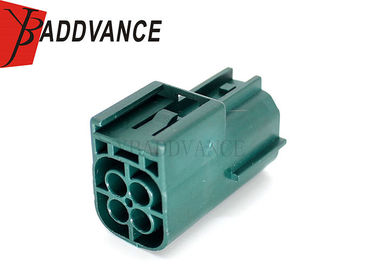

Sumitomo Wiring Systems 4 Pin Connector Male RS Series Green 6181-0513 6918-1598

Sumitomo Wiring Systems 4 Pin Connector Male RS Series Green 6181-0513 6918-1598
Sumitomo Wiring Systems 4 Pin Connector Male RS Series Green 6181-0513 6918-1598 Sumitomo Wiring Systems 4 Pin Connector Male RS Series Green 6181-0513 6918-1598 Sumitomo Wiring Systems 4 Pin Connector Male RS Series Green 6181-0513 6918-1598 Sumitomo Wiring Systems 4 Pin Connector Male RS Series Green 6181-0513 6918-1598 Sumitomo Wiring Systems 4 Pin Connector Male RS Series Green 6181-0513 6918-1598

Large Image :  Sumitomo Wiring Systems 4 Pin Connector Male RS Series Green 6181-0513 6918-1598

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: 6181-0513

Payment & Shipping Terms:

Minimum Order Quantity: 100 UNITS
Price: USD 0.5-0.7 Per set with crimp terminals
Packaging Details: Inside packing:100 units/lot put into bags. Outside packing:carton 5 layers.
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,paypal,credit card
Supply Ability: 50,000 units/month
Detailed Product Description
Sumitomo Number: S6181-0668 Series: Sumitomo RS Series
Material: PBT Color: Green
Sealed/Unsealed: Sealed Male/Female: Male
Way: 4 Way Mating Parts: 6189-7756
Leak Current: 100μA Max. Insulation Resistance: 100MΩ Min.
High Light:

sumitomo 4 pin connector

,

sumitomo terminal connector

Sumitomo Wiring Systems 4 Pin Connector Male RS Series Green 6181-0513 6181-0668





Product Description



4 Pin sumitomo sealed connectors RS series 2.3mm 090 male connector come with the following accessories kits:



Terminals:

2.3mm 8100-3803
2.3mm 8100-3805
2.3mm 8100-3804
2.3mm 8100-3806



Wire seals:

2.3mm 7165-0474
2.3mm 7165-0473
2.3mm 7165-0472
2.3mm 7165-0471



Connector accessories:

TPA 6918-1598







Specification



Keywords Sumitomo 4 pin connector
Original Number 6181-0513
Type Waterproof connector
Male/Female male
Material PBT
Series RS Series 2.3mm(090)
Contact resistance

Initial
3mΩ Max.
after durability tests
10mΩ Max.

Leak current 100μA Max.
Insulation resistance 100MΩ Min.
seal

Initial
49.0kPa Min.
after durability tests
29.4kPa Min.

Quality Control  All goods will be 100% inspected before shipment
Color Green Color
Operating Temperature range -40℃~120℃
Sample We can provide you samples before place an order
Including Connector housing,terminals,rubber seals
Main products Electrical Connectors,wire harnesses and fuel injector repair kits..
Delivery Time About 3-7 days
Replacement Brand TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on..
Design Ability Please send us drawing or samples to design OEM&ODM
Market Germany,Finland,UK,USA,CANADA,ITALY and so on...
Gross weight 1.5kgs/100 pieces
Shipping express  DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL





More details about pictures



Sumitomo Wiring Systems 4 Pin Connector Male RS Series Green 6181-0513 6918-1598 0

Sumitomo Wiring Systems 4 Pin Connector Male RS Series Green 6181-0513 6918-1598 1

Sumitomo Wiring Systems 4 Pin Connector Male RS Series Green 6181-0513 6918-1598 2
