Xi'An YingBao Auto Parts Co.,Ltd
-------------------------- Professional Supplier
Product Details:
Payment & Shipping Terms:
|
| P/N: | 1-1564520-1 | Color: | Black |
|---|---|---|---|
| Way: | 12 Way | Type: | AMP TYCO Connector |
| WARRANTY: | 1 Year | Feature: | Waterproof |
| Application: | Automotive Car | Martial: | PBT/PA66 |
| PLACE OF ORIGIN: | Shaanxi,China | HS Code: | 8536909000 |
| High Light: | tyco automotive connectors,tyco circular connectors |
||
12 Hole AMP TYCO HDSCS Series Waterproof Connector 1-1564520-1
Description
12POS,TAB 1.6X0.6,TAB HSG,ASSY AMP TYCO HDSCS Series Connector
HDSCS housings are heavy-duty, environmentally sealed connectors available in five sizes and arrangements from 2 to 18 cavities.
Following are YBADDVANCE Connection Type :
Wire to Wire
Wire to Board
Wire to Device
The connectors have a maximum current capacity of 15 Amps and a temperature range of -40°C -120°C.
They accept AMP MCP 6.3/4.8K, 2.8, and 1.5K contacts and carry up to 40 amps.
These connectors come with the terminals and seals
We also can make the wire if you need it .
Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)
High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance
Specification
|
Item name |
12 Hole AMP TYCO HDSCS Series Waterproof Connector 1-1564520-1 |
| P/N | 1-1564520-1 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
12 pin AMP TYCO connectors |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 12 hole |
| Color | Black |
| Warranty | 1 year |
| Application | Automotive Motorcycles |

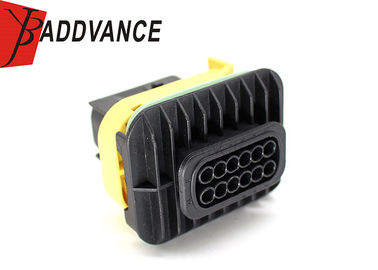

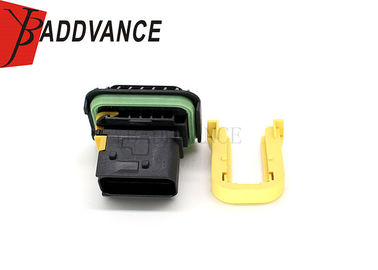

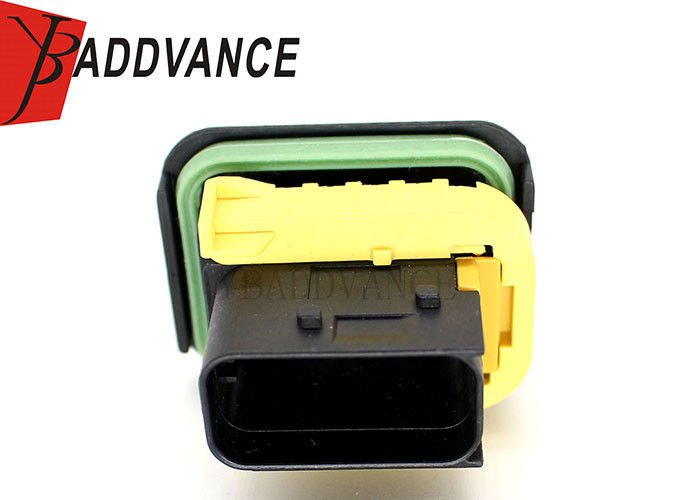

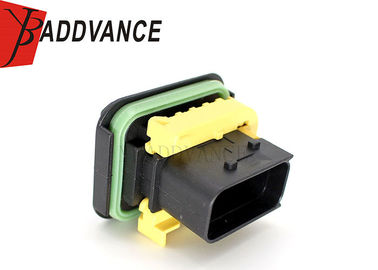

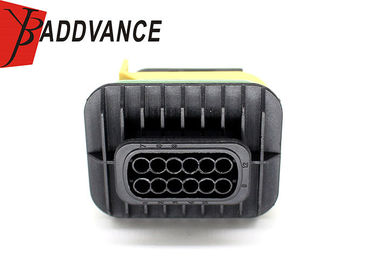

Product Picture Details
