Product Details:
Payment & Shipping Terms:
|
| P/N: | 1-1563759-1 1670866-1 | Color: | Black |
|---|---|---|---|
| Feature: | Waterproof Connector | Type: | AMP Connector |
| Martial: | PBT/PA66 | HS Code: | 8536909000 |
| Way: | 18 Hole | Application: | Automotive Car |
| WARRANTY: | 1 Year | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | tyco automotive connectors,tyco superseal connectors |
||
18 Way HDSCS Series AMP MCP Connector with Rubber Boot 1-1563759-1 1670866-1
Description
These HDSCS MCP 1.5K connector housings are designed to accept AMP MCP 1.5K contacts with an SWS (single-wire-sealing-system)
Connection Type Provided by YBADDVANCE :
Wire to Wire
Wire to Board
Wire to Device
These cable to cable and cable to device connectors have a slide lock for mating.
Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)
Connectors come with terminals ,seals and rubber boot which must be ordered separately
These are replacement high quality parts.
High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance
Specification
|
Item name |
18 Way HDSCS Series AMP MCP Connector with Rubber Boot 1-1563759-1 1670866-1 |
| P/N | 1-1563759-1 1670866-1 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
18 pin AMP connectors |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 18 hole |
| Color | Black |
| Warranty | 1 year |
| Application | Automotive car |

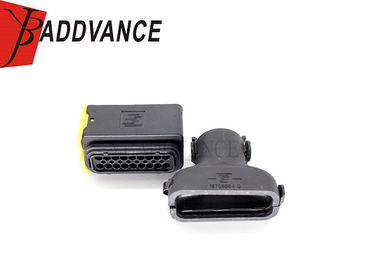

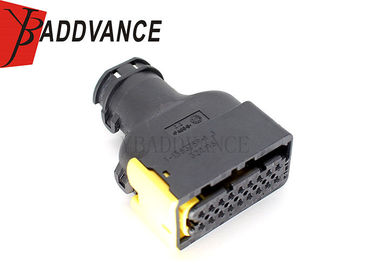

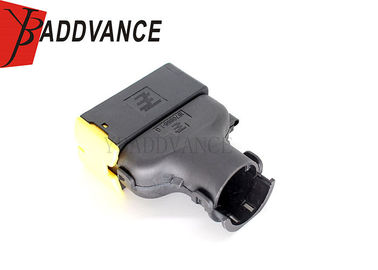

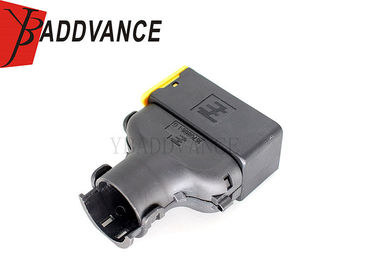

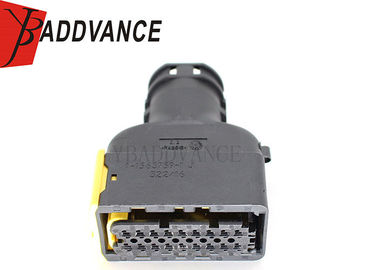

Product Picture Details
