18 Pin JAE Connectors Automotive MX23A18SF1 MX23A18XF1 With 16 - 22 Awg Terminals

China Xi'An YingBao Auto Parts Co.,Ltd certification
I'm Online Chat Now

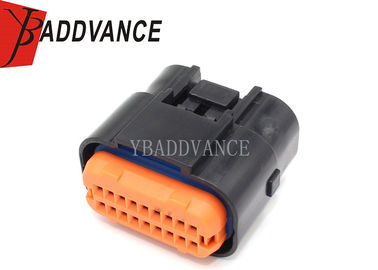

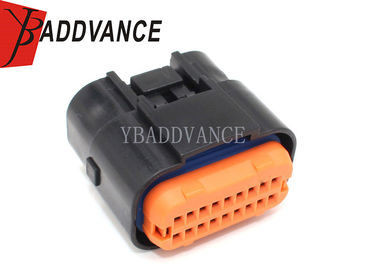

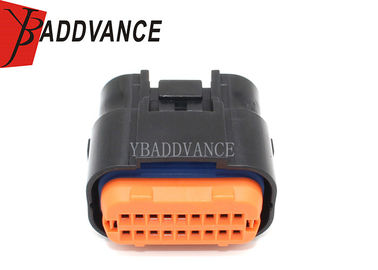

18 Pin JAE Connectors Automotive MX23A18SF1 MX23A18XF1 With 16 - 22 Awg Terminals

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  18 Pin JAE Connectors Automotive MX23A18SF1 MX23A18XF1 With 16 - 22 Awg Terminals

Product Details:

Place of Origin: China(mainland)
Certification: ISO9001
Model Number: MX23A18SF1 MX23A18XF1

Payment & Shipping Terms:

Minimum Order Quantity: 100 UNITS
Price: negotiation
Packaging Details: Inside packing:100 units/lot put into Ziplock bags. Outside packing:carton 5 layers.
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,paypal,credit card
Supply Ability: 50,000 units/month
Detailed Product Description
Features: Waterproof Manufacturer Part Number Part Number: MX23A18SF1
Number Of Positions: 18 Pin Sealed/Unsealed: Sealed
Application: Fit For Some PCM-ECM-ECU Featured Product: MX23A Series Connectors
Contact Type: Female Socket Number Of Rows: 2
High Light:

jae electronics connectors


female receptacle connector

ECU 18 Pin JAE Connector with 16 - 22 awg terminals MX23A18SF1 MX23A18XF1



Detailed Description


18 Position Rectangular Housing Connector Receptacle Black 0.098" (2.50mm).MX23A connector can be used for wide range water proof equipment including automobiles,motorcycles and so on.Reverse type pin connector with pins facing up is also available in consideration of mounting space.



General Specifications

1. No. of contactsL12, 18,26,34 pos.
Contact resistance:10m ohm max.
2. Dielectric withstanding voltage:
AC 1000 Vr.m.s.(1 minute)
3. Operating temperature:-40 to +125 degree.C
Including temperature rise caused by power distribution
4. Current Rating:3A





Keywords 18 Pin JAE Connector
Original Number MX23A18SF1 MX23A18XF1
Type High quality Original brand
Male/Female female
Material PBT
Pitch 0.098" (2.50mm)
Number of Rows 2
Row Spacing 0.173" (4.40mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Features Waterproof
Featured Product MX23A Series Connectors
Quality Control  All goods will be 100% inspected before shipment
Color Black
Operating Temperature range -40℃~120℃
Sample We can provide you samples before place an order
Including Connector housing,terminals,rubber seals
Main products Electrical Connectors,wire harnesses and fuel injector repair kits..
Delivery Time About 3-7 days
Replacement Brand TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on..
Design Ability Please send us drawing or samples to design OEM&ODM
Market Germany,Finland,UK,USA,CANADA,ITALY and so on...
Gross weight 3kgs/100 pieces

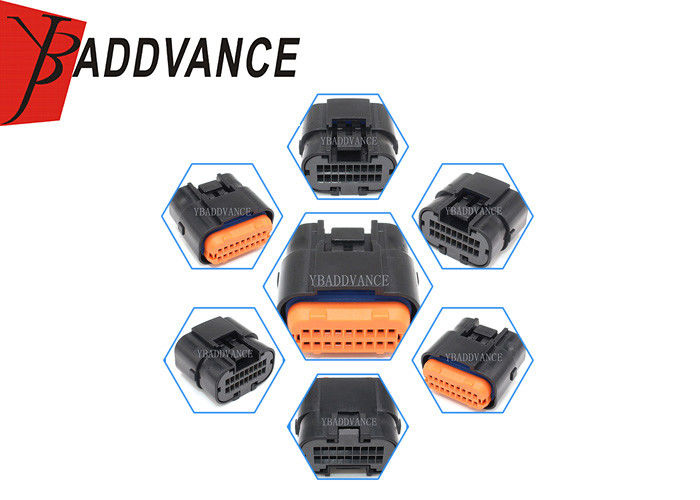

More product pictures
