Product Details:
Payment & Shipping Terms:
|
| Length: | 27mm | Width: | 45mm |
|---|---|---|---|
| Height: | 30mm | Male / Female: | Female |
| Sealed / Unsealed: | Sealed Connector | Positions: | 3 |
| Connector Type: | Plug , Socket | Color: | Black |
| Housing Material: | PBT | OE Number: | 89FG-14A464-HCB |
| Highlight: | throttle position sensor connector,ignition coil pack connector |
||
3 Way Ignition Coil Pack Wiring Loom Harness Connector For Ford Zetec EDIS 89FG14A464HCB
Description
3 Pins female coil pack connector with crimp terminals and wire seals together.
Application:
For Ford Sensor Butterfly - Coil and Various
1 X female Housing
3 X female terminals
3 X wire seals
1 X blue locking clip
Specification
|
Item name |
Ford Zetec EDIS Coil Pack 3 Way Plug Loom Connector |
| P/N | 89FG14A464HCB |
|
Number of Row |
1 |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin coil pack connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of Positions | 3 |
| Color | Black |
| Gross Weight | 1.5 kgs/100 units |
| Warranty | 1 year |
| Application | Ford Coil Pack |

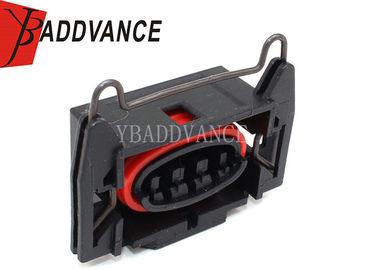

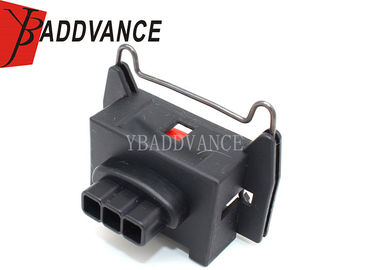

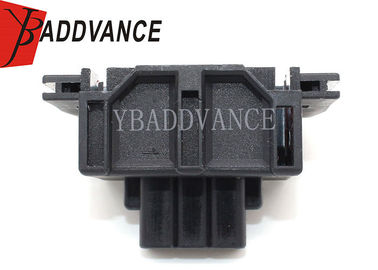

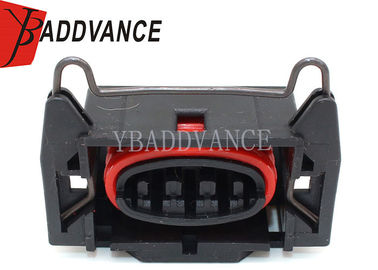

Product Picture Details
