Product Details:
Payment & Shipping Terms:
|
| Place Of Origin: | Shaanxi, China | Brand Name: | YBADDVANCE |
|---|---|---|---|
| Pin: | 5 Pin | HS Code: | 8536909000 |
| Color: | Gray | MOQ: | 100 Pcs |
| Warranty: | One Year | Material: | PA66 |

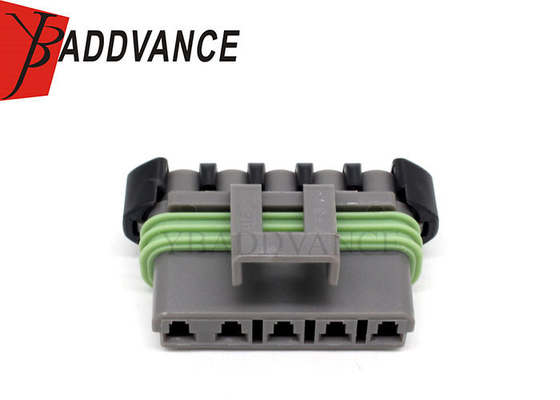

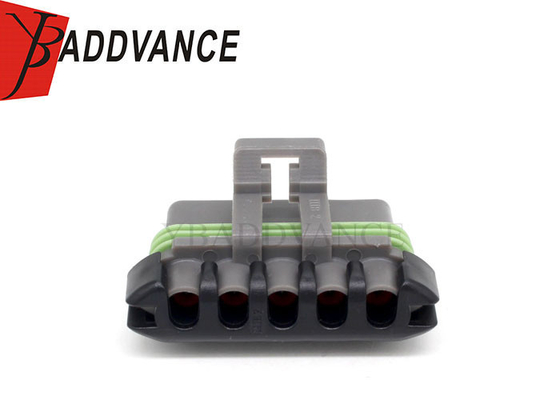

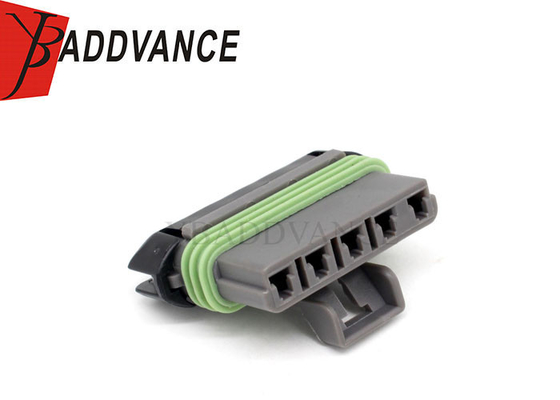

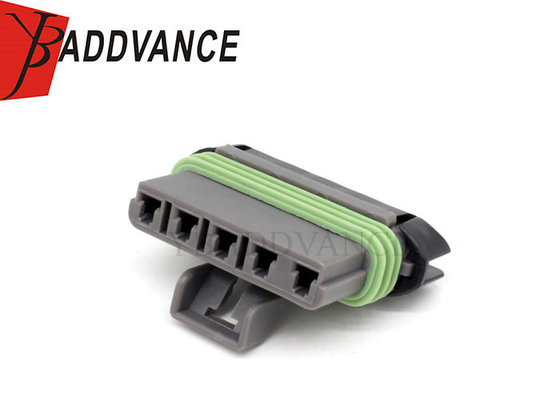

12084891 Delphi Metri-Pack 280 5 Pin Female PA66 Automotive Plug Electric Connector
Description
This part come with the following types:
Type:ADAPTER
Application:Automotive
Gender:Female
Include:Terminals and seals.
Connector type:sealed
This connector kits included the following:
1x connector housing
5x terminals
5x seals
Specification
| Product Name | 12084891 Delphi Metri-Pack 280 5 Pin Female PA66 Automotive Plug Electric Connector |
| Delivery Time | About 7-8 days |
| Way | 5 Way |
| Wire Size | 16-22AWG |
| P/N | 12084891 |
| MOQ | 100 units/lot |
| Sealed/Unsealed | sealed |
| Gender | Female |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Quality Control | All goods will be 100% inspected before shipment |
| Operating Temperature range | -40~120 |
| Contact resistance | nitial8m Max.after durability tests16m Ma |
| Leak current | Initial50kPa Min.after durability tests30kPa Min. |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits. |
| Insulation resistance | 100MΩ Min. |
| Including | Connector housing,terminals, seals |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Material | PBT,Plastic PA66,pbt gf30 and so on... |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
