Product Details:
Payment & Shipping Terms:
|
| Pin: | 4 Pin | Application: | For GM |
|---|---|---|---|
| Part-No.: | 15326423 | Gender: | Male |
| Gross Weight: | 1.5kgs/100pcs | Sealed/Unsealed: | Sealed |
| Size: | Standard | Color: | Gray |
| HS CODE: | 8536909000 | STYLE: | Delphi Connectors |
| High Light: | 15326423 Waterproof Automotive Connectors,15326423 Metri Pack 150 Connectors,15326423 Delphi Connectors |
||

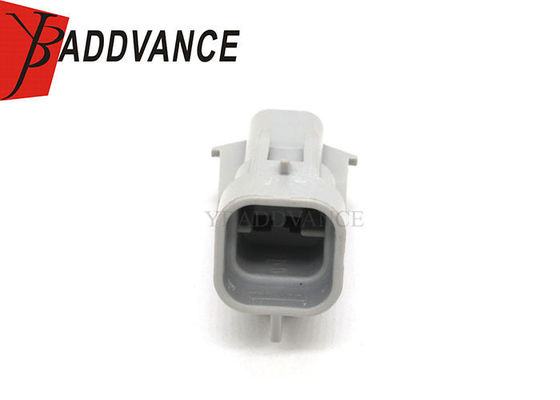

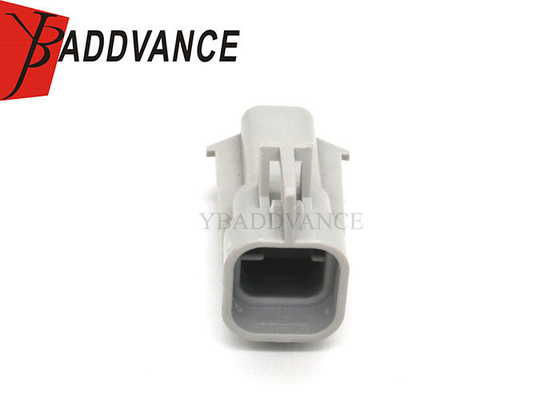

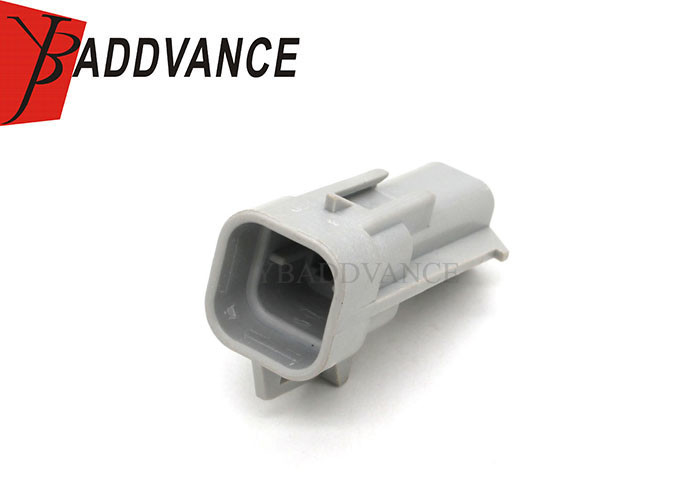

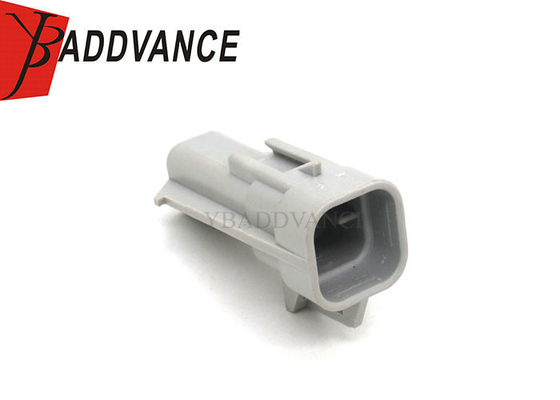

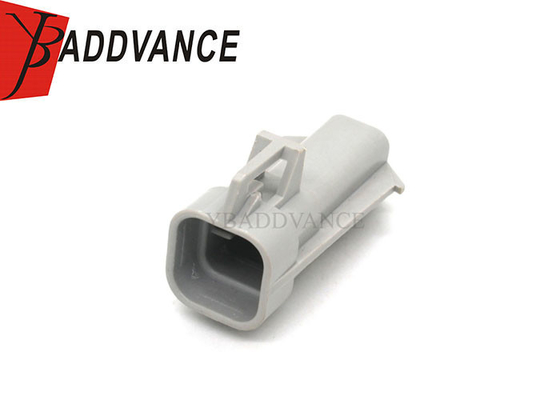

15326423 Delphi Metri-Pack 150 4 Way Gray Sealed Male Connector
Description
15326423 Delphi Metri-Pack 150 4 Way Gray Sealed Male Connector
This part come with the following types:
Accepts Terminals:Sealed Male
TPA Required:12160826
CPA Required:12077979
Mates with:12176897
Series:Metri-Pack 150
Connector Type:Male
Body Color:Gray
Sealed/Unsealed:Sealed
# of Cavities:4
# of Rows:2
Application:For GM
Specification
| P/N | 15326423 |
| Gender | Male |
| MOQ | 100 units/lot |
| Sealed/Unsealed | Sealed |
| Color | Gray |
| Gross weight | 1.5kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Quality Control | All goods will be 100% inspected before shipment |
| Wire Size | 16-22AWG |
| Operating Temperature range | -40~120 |
| Contact resistance | Initial8m Max.after durability tests16m Ma |
| Way | 4 Way |
| Leak current | Initial50kPa Min.after durability tests30kPa Min. |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Insulation resistance | 100MΩ Min. |
| Delivery Time | About 3-7 days |
| Including | Connector housing,terminals,rubber seals |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Material | PBT,Plastic PA66,pbt gf30 and so on... |
| Product Name | Delphi Connectors |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
