Deutsch 0460 Crimp Terminal Contact 0460-202-16141 0.5mm² to 1.5mm² 20AWG to 16AWG

Certification
China Xi'An YingBao Auto Parts Co.,Ltd certification
I'm Online Chat Now

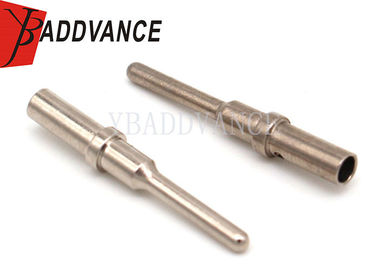

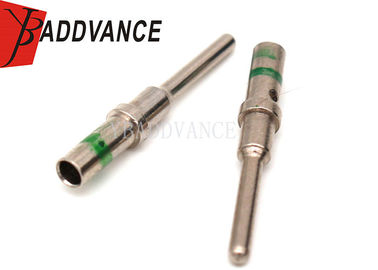

Deutsch 0460 Crimp Terminal Contact 0460-202-16141 0.5mm² to 1.5mm² 20AWG to 16AWG

Deutsch 0460 Crimp Terminal Contact 0460-202-16141 0.5mm² to 1.5mm² 20AWG to 16AWG
Deutsch 0460 Crimp Terminal Contact 0460-202-16141 0.5mm² to 1.5mm² 20AWG to 16AWG Deutsch 0460 Crimp Terminal Contact 0460-202-16141 0.5mm² to 1.5mm² 20AWG to 16AWG Deutsch 0460 Crimp Terminal Contact 0460-202-16141 0.5mm² to 1.5mm² 20AWG to 16AWG

Large Image :  Deutsch 0460 Crimp Terminal Contact 0460-202-16141 0.5mm² to 1.5mm² 20AWG to 16AWG

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: 0460-202-16141

Payment & Shipping Terms:

Minimum Order Quantity: 1000 UNITS
Price: Negotiation
Packaging Details: Inside packing:1000 units/lot put into Ziplock bags. Outside packing:carton 5 layers.
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,paypal,credit card
Supply Ability: 500,000 units/month
Detailed Product Description
Contact Plating: Nickel For Use With: DT Series Connector
Part Number: 0460-202-16141 Max Wire Size: 1.5mm²
Termination Method: Crimp Gender: Male
Maximum Wire Size AWG: 14AWG Contact Material: Copper Alloy
Mechanical Mounting: For Cable Dedicated Tool: HDT-48-00
High Light:

deutsch waterproof connectors

,

deutsch dt series connectors

Deutsch 0460 Crimp Terminal Contact 0460-202-16141 0.5mm² to 1.5mm² 20AWG to 16AWG







Product Description



Crimp Contacts Male terminal for DT and HD Series Sealed Connectors
From Deutsch, these high-quality circular crimp contacts are for use with DT and HD series sealed connectors. These connectors are environmentally sealed connectors that are designed for cable to cable applications within the automotive industry These solid contacts have a copper alloy body with nickel plating and a radial crimp type. The DT series crimp connectors are rugged quality but offer field-proven reliability.



Features & Benefits
Nickel plated copper crimp contact
Compatible with a wide range of Deutsch sealed connectors
Radial Crimp Type

Product Application Information
Characterised by their rugged thermoplastic housing, Deutsch connectors are heavy-duty and are commonly used in automotive



Application

These crimp pin contacts are compatible with the Deutsch DT, HDP20, HD10 and HD30 ranges of sealed connectors.
13 A current rating
Size 16 suitable for 16, 18 & 20 AWG wire sizes







Specification



Part Number

0460-202-16141

Contact Size 16
Contact Style Solid
Wire cross section
0.5...1mm2
Gender Pin/Male
Current Rating  13 Amps Continuous

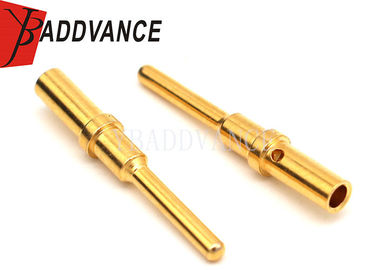

Gold Plated Version

0460-215-1631

Crimp Tool  PT-48-00,HDT-48-00,HDT-1561
Mating Pin Diameter  1.5 mm
Application

DT Series Connectors

Contact Plating  Nickel Plated Contacts
Connector series AEC, DRB, DRC, DT, DTV, HD10, HD30, HDP20, Jiffy Splice, STRIKE
Operating Temperature range -55℃~125℃
Wire AWG 14
Contact 16
Contact Type Pin
Contact Material Copper Alloy
Contact Termination Type Crimp
Design Ability Please send us drawing or samples to design OEM&ODM
Market Germany,Finland,UK,USA,CANADA,ITALY and so on...
Gross weight 1kgs/1000 pieces
Shipping express  DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL
