6189-6171 Sumitomo MT 090 Series 6 Pin Male Connector With Wire Seals

Certification
China Xi'An YingBao Auto Parts Co.,Ltd certification
I'm Online Chat Now

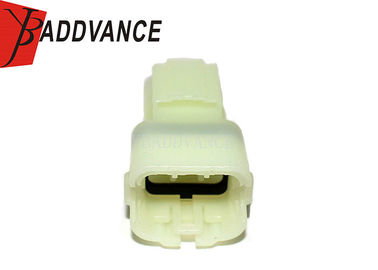

6189-6171 Sumitomo MT 090 Series 6 Pin Male Connector With Wire Seals

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  6189-6171 Sumitomo MT 090 Series 6 Pin Male Connector With Wire Seals

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: 6189-6171

Payment & Shipping Terms:

Minimum Order Quantity: 100 UNITS
Price: USD 0.5-0.7 Per set with crimp terminals
Packaging Details: Inside packing:100 units/lot put into Ziplock bags. Outside packing:carton 5 layers.
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,paypal,credit card
Supply Ability: 50,000 units/month
Detailed Product Description
Sumitomo No.: 6189-6171 Keywords: Sumitomo 6 Pin Connector
Material: Nylon Color: White
Sealed/Unsealed: Sealed Gender: Male
Number Of Position: 6 Pin Series: 2.3mm(090)
Leak Current: 100μA Max. Insulation Resistance: 100MΩ Min.
High Light:

sumitomo 2 pin connector

,

sumitomo terminal connector

6189-6171 MT 090 Series Sumitomo 6 Pin Male Connector With Wire Seals





Product Description



Sumitomo 6 Pin male Connector comes complete with crimp terminals and wire seals.

the connector is used highly on TPS, CAM, CRANK, Sensors for GSXR and YZF Models.06
All connectors Come complete with male - female terminals and Wire seals.
For wire sizes .6 - 1.3mm (16-22 AWG)



Terminals part number

2.3mm 1500-0105
2.3mm 8230-4408



Wire Seals part number

2.3mm 7160-8234





Specification



Keywords Sumitomo 6 Pin male Connector
Original Number 6189-6171
Type sealed connector
Male/Female male
Material Nylon
Series MT 090 Series 2.3mm(090)
Contact resistance

Initial
3mΩ Max.
after durability tests
10mΩ Max.

Leak current 100μA Max.
Insulation resistance 100MΩ Min.
seal

Initial
49.0kPa Min.
after durability tests
29.4kPa Min.

Quality Control  All goods will be 100% inspected before shipment
Color White
Operating Temperature range -40℃~120℃
Sample We can provide you samples before place an order
Including Connector housing,terminals,rubber seals
Main products Electrical Connectors,wire harnesses and fuel injector repair kits..
Delivery Time About 3-7 days
Replacement Brand TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on..
Design Ability Please send us drawing or samples to design OEM&ODM
Market Germany,Finland,UK,USA,CANADA,ITALY and so on...
Gross weight 1kgs/100 pieces
Shipping express  DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL





More details about pictures

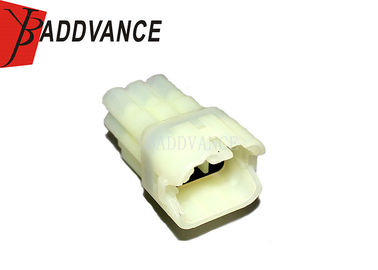

6189-6171 Sumitomo MT 090 Series 6 Pin Male Connector With Wire Seals 0

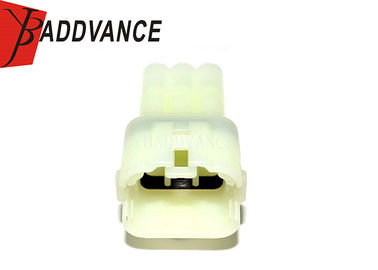

6189-6171 Sumitomo MT 090 Series 6 Pin Male Connector With Wire Seals 1

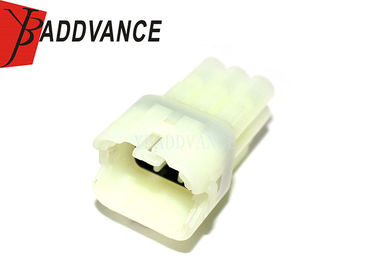

6189-6171 Sumitomo MT 090 Series 6 Pin Male Connector With Wire Seals 2
