26 Pin Ecu Connector Plug / MX23A Series Ecu Harness Connectors MX23A26SF1 MX23A26XF1

Certification
China Xi'An YingBao Auto Parts Co.,Ltd certification
I'm Online Chat Now

26 Pin Ecu Connector Plug / MX23A Series Ecu Harness Connectors MX23A26SF1 MX23A26XF1

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

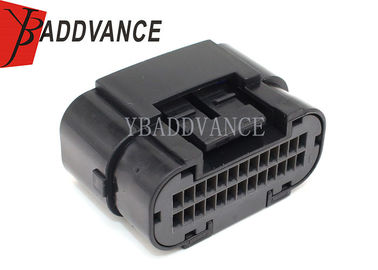

Large Image :  26 Pin Ecu Connector Plug / MX23A Series Ecu Harness Connectors MX23A26SF1 MX23A26XF1

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: MX23A26SF1 MX23A26XF1

Payment & Shipping Terms:

Minimum Order Quantity: 100 units
Price: Negotiation
Packaging Details: Inside packing :100 units / lot put into Ziplock bags.Outside packing :carton 5 layer
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,PayPal , credit card
Supply Ability: 50,000 units/moth
Detailed Product Description
P/N: MX23A26SF1 MX23A26XF1 Way: 26 Way
Type: Sealed Connector Gender: Female
Color: Black HS Code: 8536909000
Feature: Waterproof WARRANTY: 1 Year
Martial: PBT/PA66 PLACE OF ORIGIN: Shaanxi,China
High Light:

jae electronics connectors

,

female receptacle connector

MX23A26SF1 MX23A26XF1 JAE ECU 26 Pin MX23A Series Connector





Description



JAE ECU 26 Pin MX23A Series Connector
Series: MX23A

Number of Positions: 26
Pitch: 0.098" (2.50mm)
Length: 46.6 mm
Front Cap : MX23A26XF1
Wire Gauge Range: 22 AWG to 16 AWG
For some PCM-ECM-ECU and electronic control units used by S uzuki GSXR, 05 up Kawasaki ZX6R, Performance Electronics PE3 and etc.









Specification



Item name

MX23A26SF1 MX23A26XF1 JAE ECU 26 Pin MX23A Series Connector
P/N MX23A26SF1 MX23A26XF1

Wire Size

10-14AWG

Operating Temperature range

-40℃~125℃

Insulation resistance

100M Min.

MOQ

100 units/lot
Key words

26 pin Sealed Connector

Design Tooling

Sending us samples or drawing to design it

Delivery Time

About 5-8 work days

Sealed/Unsealed

sealed

Leak current

Initial50kPa Min.after durability tests30kPa Min.
The number of hole  26 way
Color  Black
Warranty 1 year
Application Automoive Motorcycles









Product Picture Details

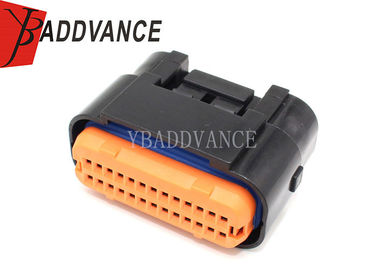

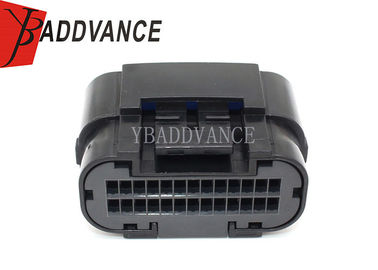

26 Pin Ecu Connector Plug / MX23A Series Ecu Harness Connectors MX23A26SF1 MX23A26XF1 0

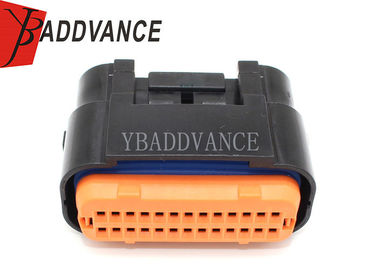

26 Pin Ecu Connector Plug / MX23A Series Ecu Harness Connectors MX23A26SF1 MX23A26XF1 1

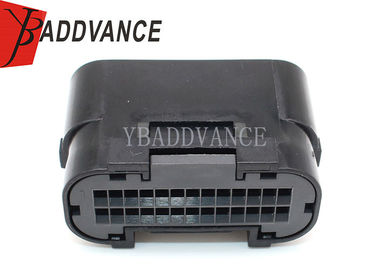

26 Pin Ecu Connector Plug / MX23A Series Ecu Harness Connectors MX23A26SF1 MX23A26XF1 2
