Xi'An YingBao Auto Parts Co.,Ltd
-------------------------- Professional Supplier
Product Details:
Payment & Shipping Terms:
|
| Model NO: | 282106-1 | Type: | ADAPTER |
|---|---|---|---|
| Application: | For Ducati Fuel Tank/Pump | Pin: | 4 Pin |
| Color: | Black | MOQ: | 100 Pcs |
| Keywords: | Superseal 1.5 Series Connector | Shipping By: | DHL\UPS\Fedex\EMS\ARAMEX |

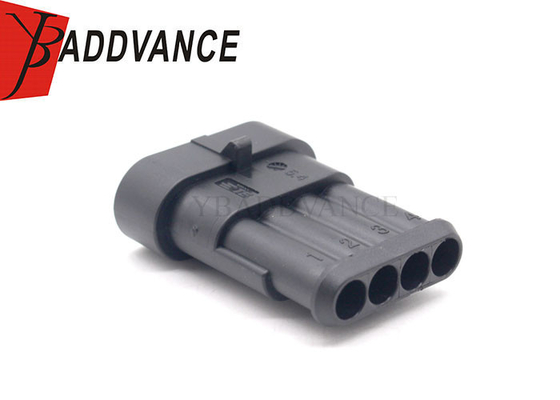

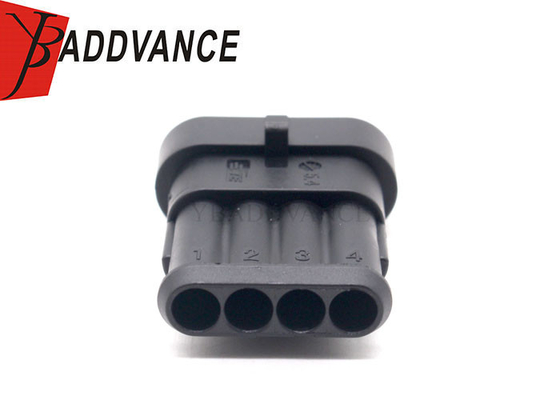

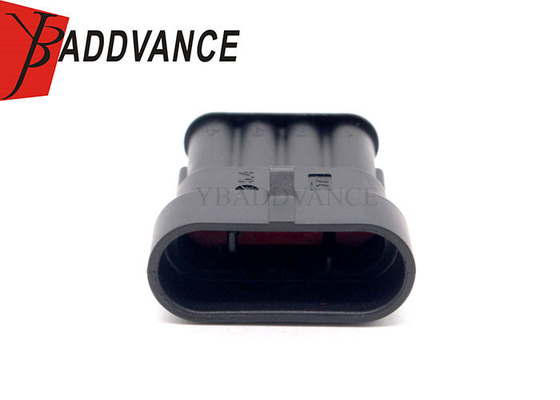

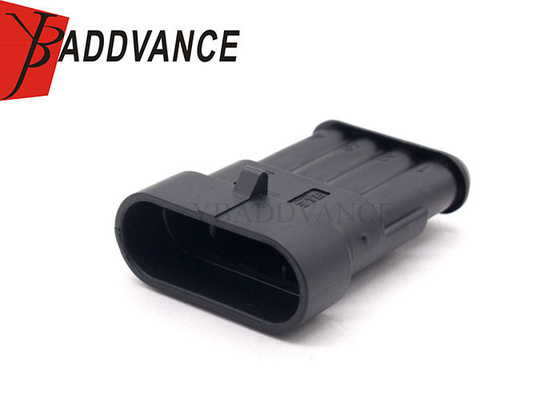

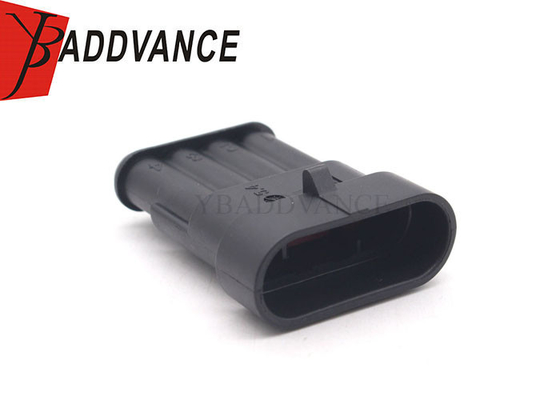

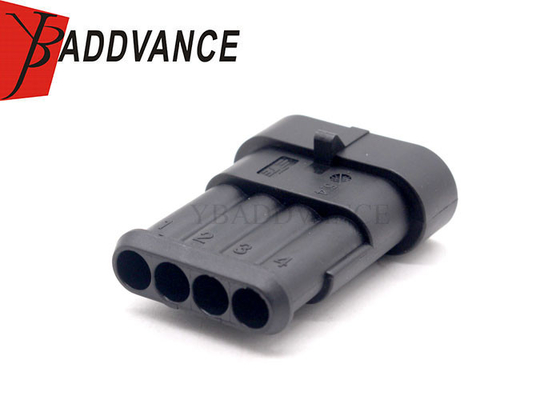

282106-1 4 Pin AMP SUPERSEAL 1.5 Series Waterproof Male Connectors For Ducati Fuel Tank/Pump
Description
This part come with the following types:
Brand: YBADDVANCE
Connector Type:Male
Body Color:Black
Sealed/Unsealed:Sealed
MOQ:100pcs
| Product Name |
282106-1 4 Pin AMP SUPERSEAL 1.5 Series Waterproof Male Connectors For Ducati Fuel Tank/Pump |
| Delivery Time | About 7-8 days |
| Way |
4 Way |
| Wire Size | 16-22AWG |
| P/N | 282106-1 |
| MOQ | 100 units/lot |
| Sealed/Unsealed | Sealed |
| Gender | Male |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Quality Control | All goods will be 100% inspected before shipment |
| Operating Temperature range | -40~120 |
| Contact resistance | nitial8m Max.after durability tests16m Ma |
| Leak current | Initial50kPa Min.after durability tests30kPa Min. |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits. |
| Insulation resistance | 100MΩ Min. |
| Including | Connector housing,terminals,rubber seals |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Material | PBT,Plastic PA66,pbt gf30 and so on... |
| Market |
Germany,Finland,UK,USA,CANADA,ITALY and so on... |
More details about pictures
