Product Details:
Payment & Shipping Terms:
|
| Place Of Origin:: | Shaanxi, China | Model Number:: | 54200608 |
|---|---|---|---|
| Type:: | Wire Harness Connector | Application:: | Auto |
| Brand Name:: | YBADDVANCE | Gender:: | Female |
| Keywords:: | Waterproof Connector Housing | Shipping By:: | DHL\UPS\Fedex\EMS\ARAMEX |
| High Light: | 54200608 Waterproof Connector Housing,2.8MM Waterproof Connector Housing,54200608 |
||

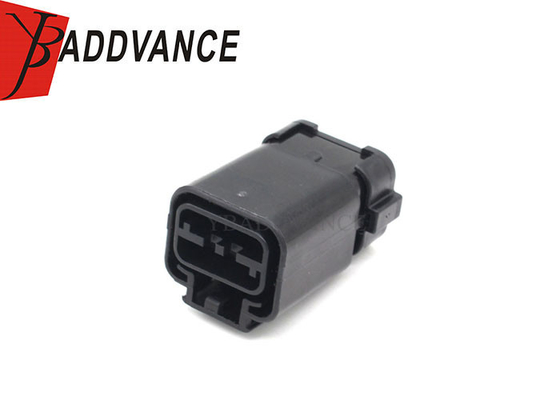

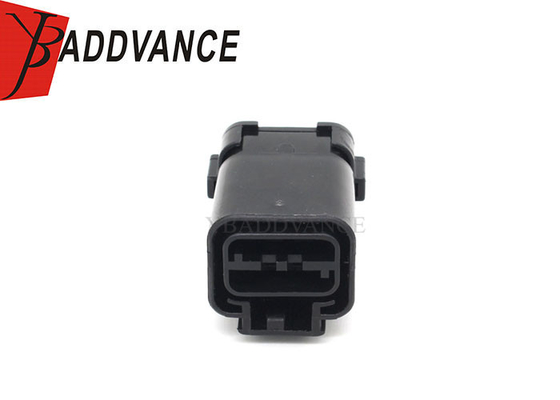

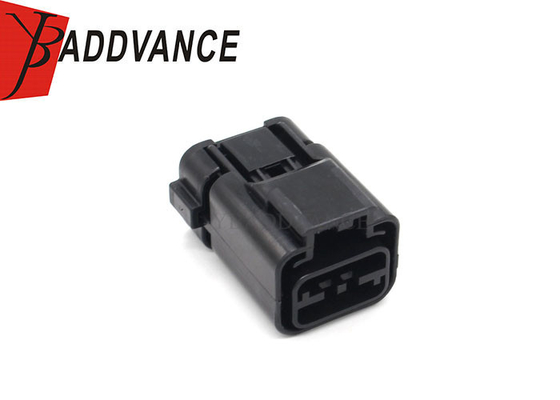

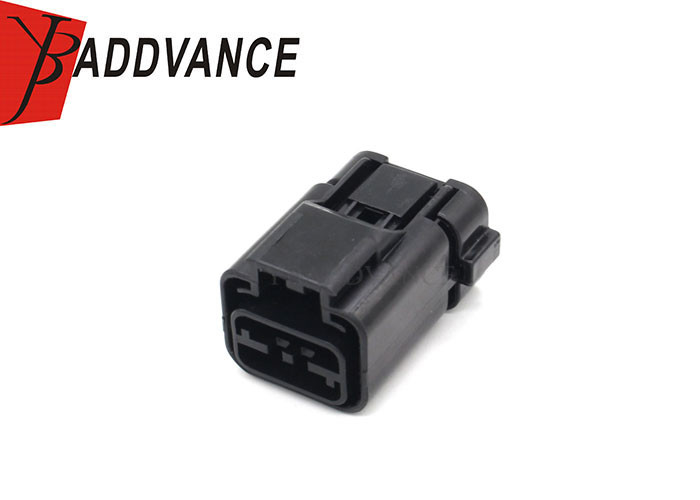

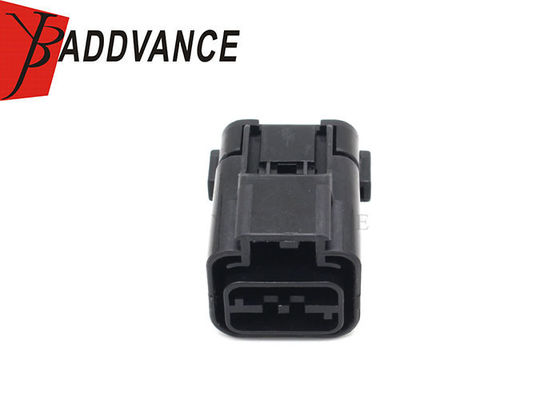

54200608 D elphi 6 Way Female 2.8MM Apex Series Waterproof Connector Housing
Description
Orginal 16 Pin Female Auto Wire Harness Connector Black With Terminals
This part come with the following types:
Specification
| Product Name | D elphi 6 Way Female 2.8MM Apex Series Waterproof Connector Housing |
| Delivery Time | About 7-8 days |
| Way | 6 Way |
| Wire Size | 16-22AWG |
| P/N | 54200608 |
| MOQ | 100 units/lot |
| Sealed/Unsealed | Sealed |
| Gender | Female |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Quality Control | All goods will be 100% inspected before shipment |
| Operating Temperature range | -40~120 |
| Contact resistance | nitial8m Max.after durability tests16m Ma |
| Leak current | Initial50kPa Min.after durability tests30kPa Min. |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits. |
| Insulation resistance | 100MΩ Min. |
| Including | Connector housing,terminals,rubber seals |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Material | PBT,Plastic PA66,pbt gf30 and so on... |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
