Product Details:
Payment & Shipping Terms:
|
| Part-No.: | PPI0001502 33500503 | Application: | For Delphi |
|---|---|---|---|
| Way: | 64 Way | Gender: | Female Connector |
| Color: | Black + Gray | Warranty: | One Year |
| HS CODE: | 8536909000 | Series: | CMC Series |
| High Light: | 33500503 Automotive Electrical Connectors,PPI0001502 Automotive Electrical Connectors,Delphi PPI0001502 |
||

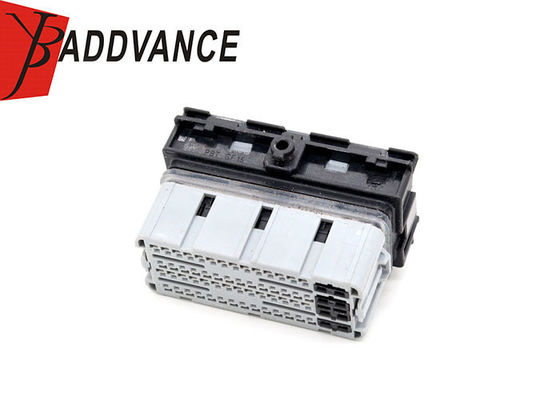

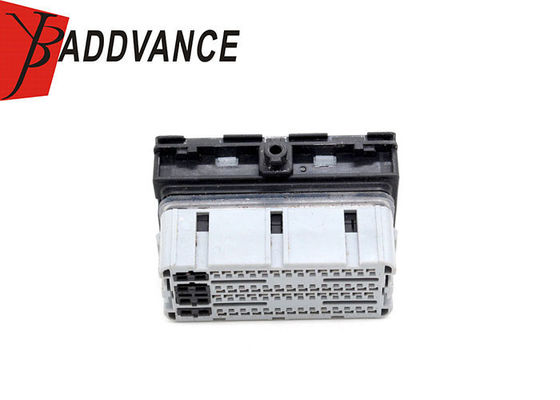

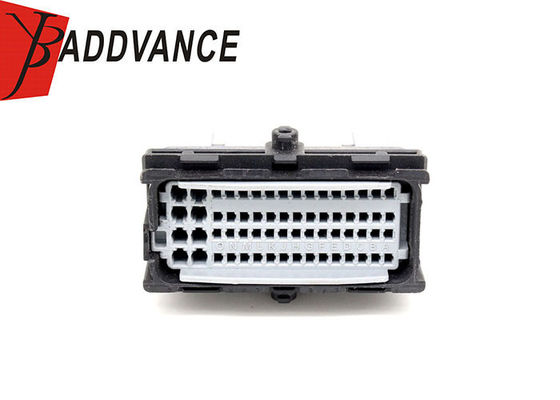

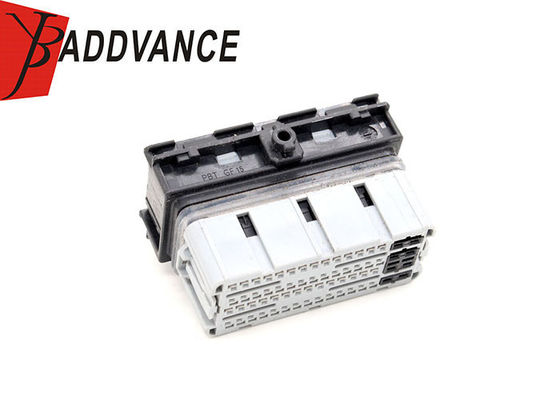

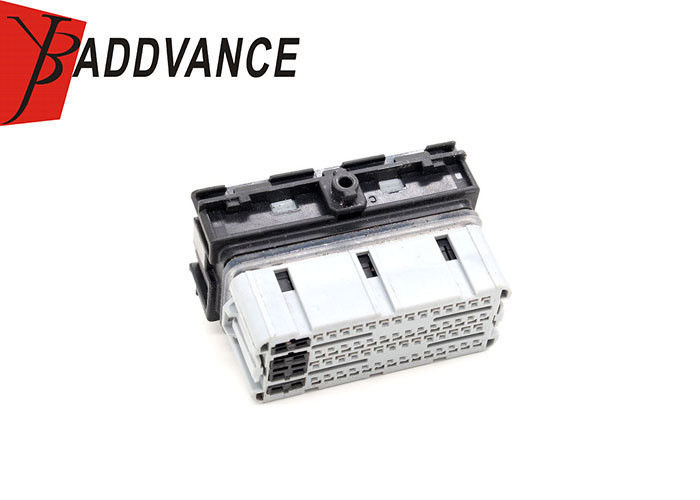

Delphi PPI0001502 33500503 64 Pin CMC Series Female Connector
Description
Delphi PPI0001502 33500503 64 Pin CMC Series Female Connector
This part come with the following types:
Brand :YBADDVANCE
Model :PPI0001526 PPI0001502 PPI0001501
Type :rubber housing (housing)
Low :operating frequency
Application :automobile
Interface Type :AC/DC
Round :shape
Line length :1(mm)
Characteristic :waterproof
Contact material :copper
Application:For Delphi
Specification
| Number of Positions | 64 Pin |
| Original number | PPI0001502 33500503 |
| Material | Housing:PBT+G,PA66+GF;Terminal:Copper Alloy/Brass/Phosphor Bronze. |
| Product Name | 64 Pin CMC Series Female Connector |
| Male/Female | Female |
| Quality Control | All goods will be 100% inspected before shipment |
| Wire Size | 16-20AWG |
| Color | Gray |
| Operating Temperature range | -40℃~120℃ |
| Contact resistance | Initial8m Max.after durability tests16m Ma |
| Leak current | Initial50kPa Min.after durability tests30kPa Min. |
| Resistor | 120 Ohm |
| MOQ | 100 units/lot |
| Sealed/Unsealed | Sealed |
| Including | Connector housing,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Delivery Time | About 3-7 days |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
