Product Details:
Payment & Shipping Terms:
|
| HS Code: | 8536909000 | Color: | Black |
|---|---|---|---|
| Warranty: | 1 Year | Materials: | PBT,Plastic PA66,pbt Gf30 And So On... |
| Sealed/Unsealed: | Sealed | Standard: | OEM Standard |
| Leak Current: | 100μA Max. | Insulation Resistance: | 100M Min. |
| Moq: | 100 Pcs | Gender: | Male |
| High Light: | DT04-6P-EE01 Deutsch Dt 6 Pin Connector,Automotive Deutsch Dt 6 Pin Connector,DT04-6P-EE01 Female Electrical Connectors |
||

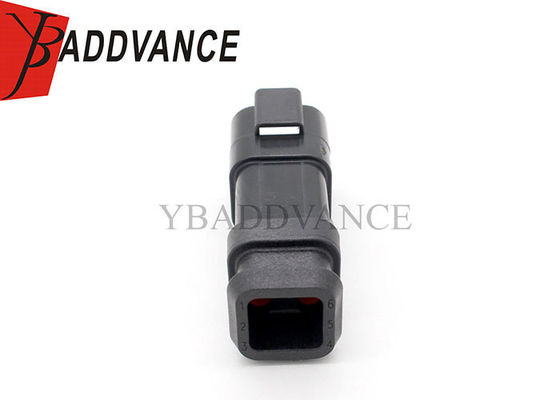

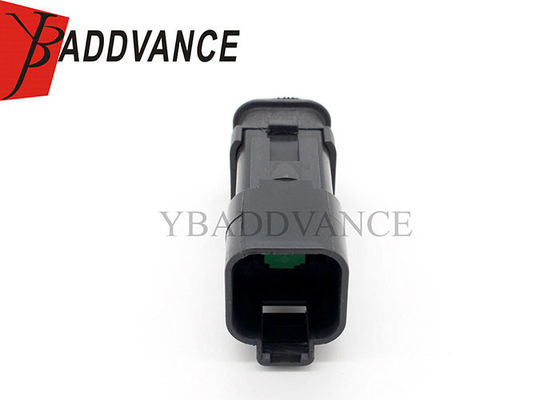

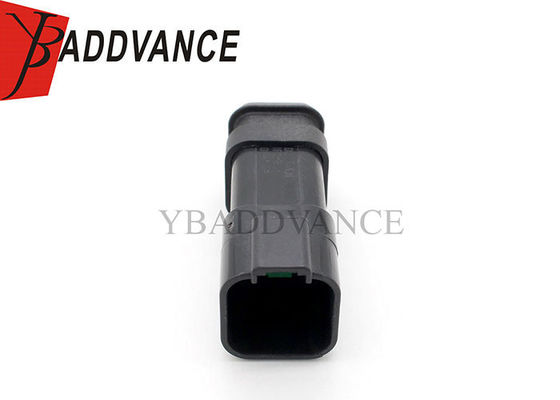

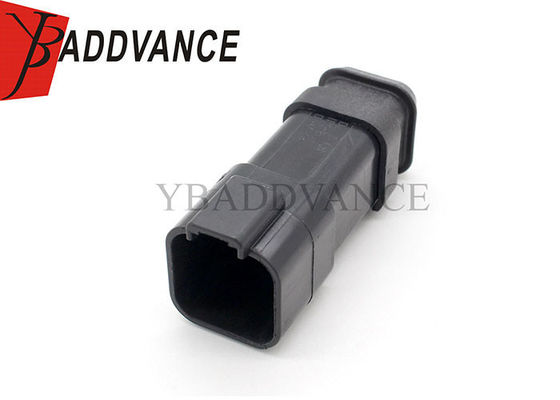

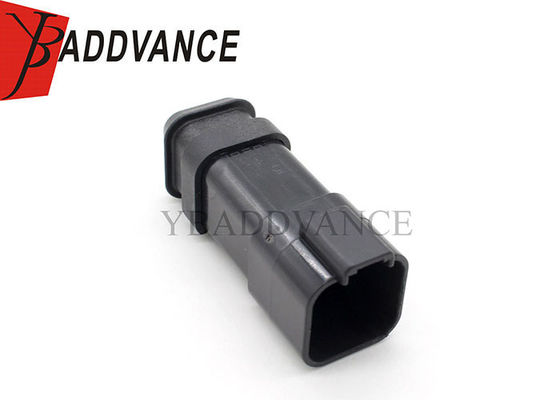

DT04-6P-EE01 Deutsch Automotive Female Electrical 6 Pin Connectors
Description of Product
HD16-9-1939S-P080 Deutsch 9 Pin Connector 13A Contact Current Rating
Including:
connector housing * 1
wedge:1
Mating Pin Diameter : 1.59 mm [ .063 in ]
Connector System : Wire-to-Wire
Number of Positions : 6
Centerline (Pitch) : 9.12 mm [ .359 in ]
Mounting Type:Free Hanging (In-Line)
Contact Termination:Crimp
Fastening Type:Latch Holder
Color:Black
Features:Cap (Cover), IP68, IP6K9K
Note:Contacts Not Included
Number of Rows:3
| Keywords |
6 Pin Connector |
| Part Number | DT04-6P-EE01 |
| Sealed/Unsealed |
sealed |
| Male/Female | male |
| Material | PBT PA66 |
| Way | 6 way |
| MOQ |
100 units/lot |
| Leak current | 100μA Max. |
| Insulation resistance | 100MΩ Min. |
| seal |
Initial |
| Quality Control | All goods will be 100% inspected before shipment |
| Housing Color | Black |
| Operating Temperature range | -40℃~120℃ |
| Sample | We can provide you samples before place an order |
| Including | Housing Socket,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Delivery Time | About 3-7 days |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on. |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | CANADA,ITALY,Germany,Finland,UK,USA, and so on... |
| Gross weight | 2kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
