Home ProductsDeutsch Automotive Connectors

DT04-12PA-E004 Deutsch Automotive Connectors DT Black 12 Way Rectangular Connectors

Certification
China Xi'An YingBao Auto Parts Co.,Ltd certification
I'm Online Chat Now

DT04-12PA-E004 Deutsch Automotive Connectors DT Black 12 Way Rectangular Connectors

DT04-12PA-E004 Deutsch Automotive Connectors DT Black 12 Way Rectangular Connectors
DT04-12PA-E004 Deutsch Automotive Connectors DT Black 12 Way Rectangular Connectors

Large Image :  DT04-12PA-E004 Deutsch Automotive Connectors DT Black 12 Way Rectangular Connectors

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: DT04-12PA-E004

Payment & Shipping Terms:

Minimum Order Quantity: 100 UNITS
Price: Negotiation
Packaging Details: Inside packing:100 units/lot put into bags. Outside packing:carton 5 layers.
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,paypal,credit card
Supply Ability: 50,000 units/month
Detailed Product Description
Width : 22.25 mm [ .876 in ] Gender: Male
Height : 45.92 mm [ 1.808 in ] Voltage Rating: 250 V
Length : 40.56 mm [ 1.597 in ] Pin: 12 Pin
Centerline (Pitch):  4.5 mm [ .175 in ] Part Number: DT04-12PA-E004
High Light:

DT04-12PA-E004 Deutsch Automotive Connectors

,

DT Deutsch Automotive Connectors

,

DT04-12PA-E004 12 pin rectangular connector

DT04-12PA-E004 Deutsch DT Black 12 Way Rectangular Connectors





Description of  Product



Connector System : Wire-to-Wire

Sealable : Yes

Hybrid Connector : No

Primary Locking Feature : Integrated in Housing

Strain Relief : Add By Accessory

Color : Black

Connector Code : A

Cable Exit Angle : 180°

Body Material : PA GF




Specification



Part Number DT04-12PA-E004
Housing Material

Polyamide (PA)

Current Rating 13 A
Material PBT  PA66
Nominal Voltage Architecture (V)
12, 24, 48
Operating Voltage (VAC) 250
Operating Voltage (VDC) 250
Maximum Operating Temperature
+ 125 C
Minimum Operating Temperature - 55 C
UL Flammability Rating  12mm Flame Test per Standard UL-94
Quality Control  All goods will be 100% inspected before shipment
Housing Color Grey
Design Ability Please send us drawing or samples to design OEM&ODM
Market CANADA,ITALY,Germany,Finland,UK,USA, and so on...
Gross weight 2kgs/100 pieces
Shipping express  DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL







More details about pictures

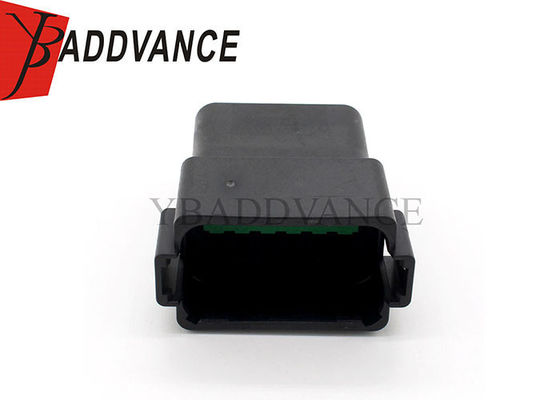

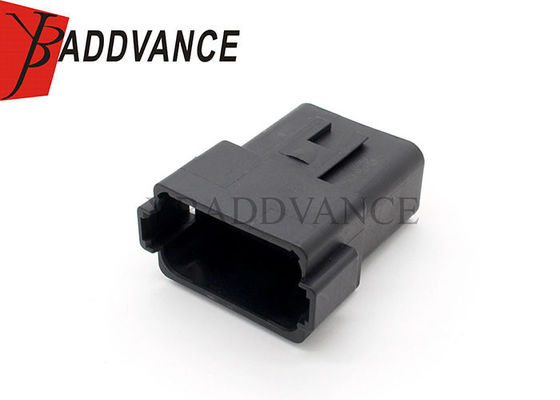

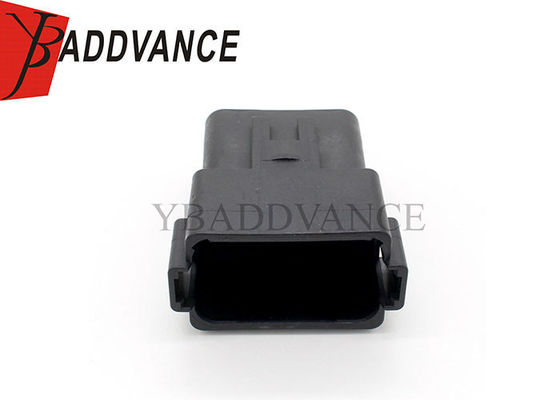

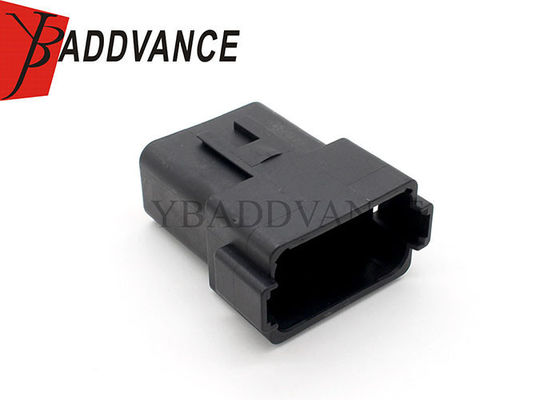

DT04-12PA-E004 Deutsch Automotive Connectors DT Black 12 Way Rectangular Connectors 0DT04-12PA-E004 Deutsch Automotive Connectors DT Black 12 Way Rectangular Connectors 1
