Product Details:
Payment & Shipping Terms:
|
| Part Number: | DT06-12SA-CE02 | Pitch: | 9.12 Mm |
|---|---|---|---|
| Color: | Black | Gender: | Female |
| Voltage Rating: | 250 V | Pin: | 12 Pin |
| Modification: | Reduced Dia. Seals | Insullation: | .053-.120 [1.35-3.05] |
| High Light: | DT06-12SA-CE02 Deutsch Automotive Connectors,UL94 V-0 Deutsch Automotive Connectors,DT06-12SA-CE02 deutsch dt 12 pin connector |
||

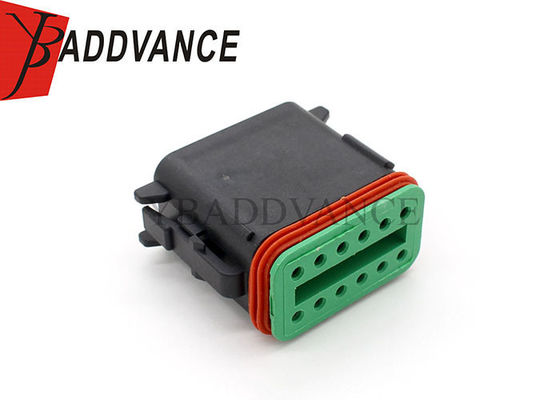

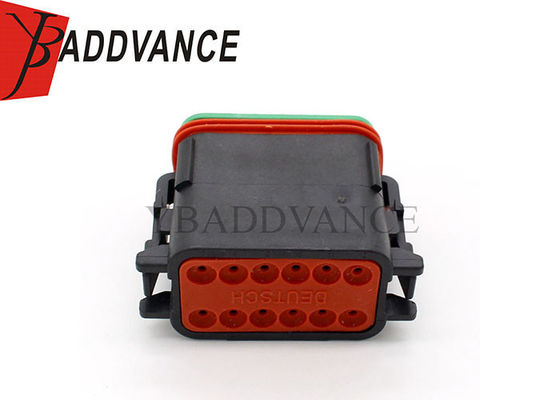

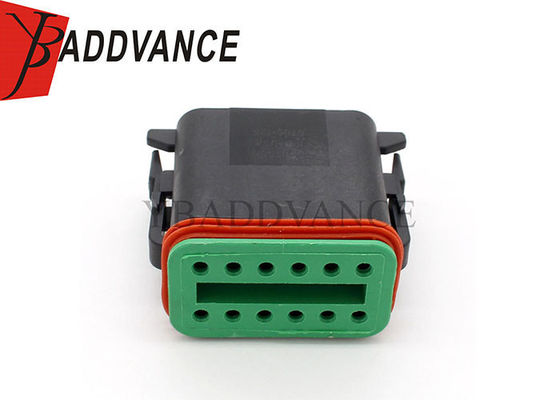

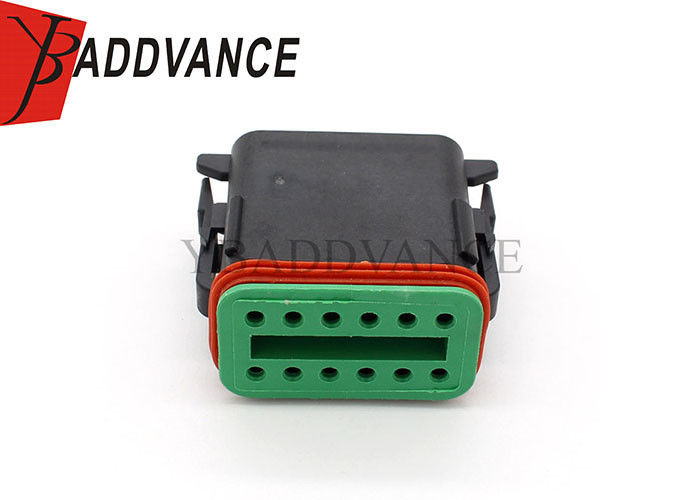

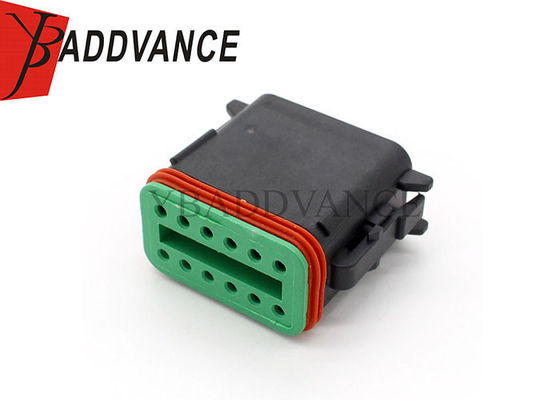

DT06-12SA-CE02 DT Series Black 12 Way Deutsch Connector
Description of Product
| Dimensions |
Width : 18.19 mm [ .716 in ]
Height : 40.56 mm [ 1.597 in ]
Length : 30.94 mm [ 1.218 in ]
|
| Accepts Wire Insulation Diameter Range | 1.35 – 3.05 mm [ .053 – .12 in ] / 20 AWG to 14 AWG |
| Mating Pin Diameter | 1.59 mm [ .063 in ] |
| Centerline (Pitch) | 9.12 mm [ .359 in ] |
| Housing Material |
Polyamide (PA) |
| Material | PBT PA66 |
| Maximum Operating Temperature |
+ 125 C
|
| Minimum Operating Temperature | - 55 C |
| Description: | Automotive Connectors DT 3WAY RECEPTACLE FLANGE MOUNT |
| Quality Control | All goods will be 100% inspected before shipment |
| Housing Color | Grey |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | CANADA,ITALY,Germany,Finland,UK,USA, and so on... |
| Gross weight | 2kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
