Xi'An YingBao Auto Parts Co.,Ltd
-------------------------- Professional Supplier
Product Details:
Payment & Shipping Terms:
|
| Number Of Positions: | 8 Position | Part-No.: | DT06-08SA-E003 |
|---|---|---|---|
| Application: | For Truck / Agricultural Vehicle | Series: | DT Series |
| STYLE: | Deutsch Automotive Connectors | Color: | Gray |
| Gender: | Plug (Female) | Warranty: | One Year |
| High Light: | DT06-08SA-E003 Deutsch Automotive Connectors,100MΩ Deutsch Automotive Connectors,DT06-08SA-E003 8 position connector |
||

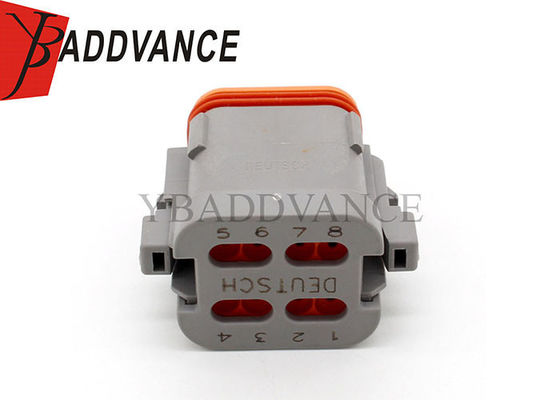

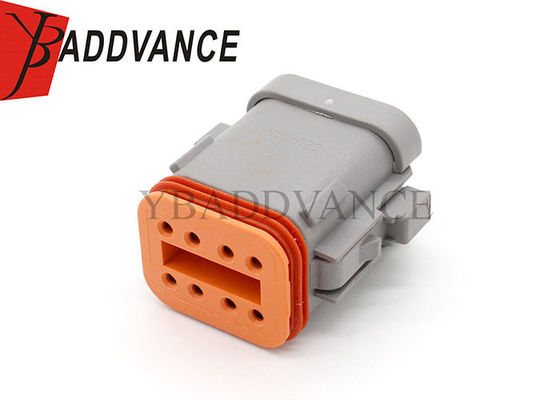

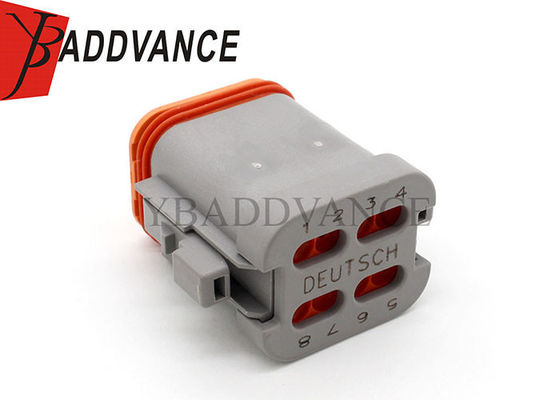

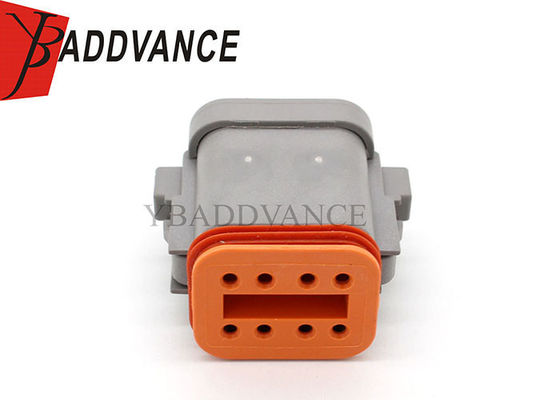

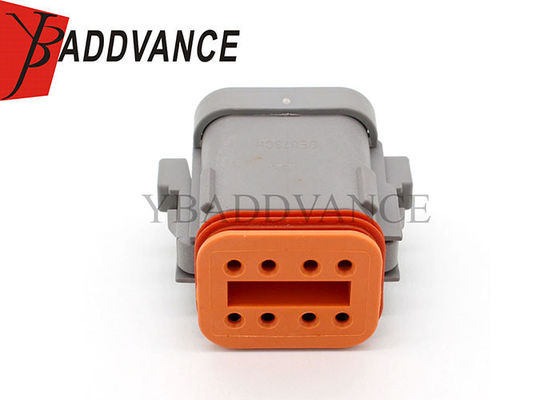

Deutsch 8 Position Female DT Series Connector With Short Cap
Specification
| Sealed/Unsealed | sealed |
| Color | Gray |
| Material | PBT,Plastic PA66,pbt gf30 and so on... |
| Quality Control | All goods will be 100% inspected before shipment |
| Wire Size | 16-22AWG |
| P/N | DT06-08SA-E003 |
| Operating Temperature range | -40~120 |
| Contact resistance | Initial8m Max.after durability tests16m Ma |
| Leak current | Initial50kPa Min.after durability tests30kPa Min. |
| Insulation resistance | 100MΩ Min. |
| MOQ | 100 units/lot |
| Product Name | 8 Position Female DT Series Connector With Short Cap |
| Including | Connector housing,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Way | 8 Way |
| Delivery Time | About 3-7 days |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Gender | Female |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Gross weight | 1.5kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
Description
Deutsch 8 Position Female DT Series Connector With Short Cap
This part come with the following types:
Brand: YBADDVANCE
MOQ:100pcs
Application:For Truck
Hot products
| TE Connector | Gender | Pin number |
| 0-2112986-1 A | Female Connector | 2 Pin |
| 0-2112986-2 A | Female Connector | 2 Pin |
| 0-2236114-1 B | Female Connector | 2 Pin |
| 1-1924067-4 | Female Connector | 2 Pin |
| 1-2296694-3 | Female connector | 2 Pin |
| 1-1924067-6 | Female Connector | 2 Pin |
| 2-2112986-5 A | Female Connector | 2 Pin |
| So on.. | ... | ... |
