Product Details:
Payment & Shipping Terms:
|
| Part-No.: | 6189-0774 6918-1594 | Pin: | 2 Pin |
|---|---|---|---|
| STYLE: | Sumitomo Sealed Connectors | Gender: | Female |
| HS CODE: | 8536909000 | Color: | Brown |
| Sealed/Unsealed: | Sealed | MOQ: | 100 Pcs |
| Gross Weight: | 2kgs/100pcs | Application: | For N-issan |
| High Light: | IAC Sumitomo Sealed Connectors,6189-0774 Sumitomo Sealed Connectors,6918-1594 sumitomo fast connector |
||

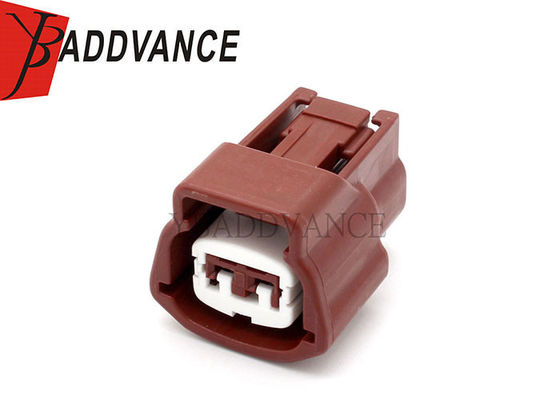

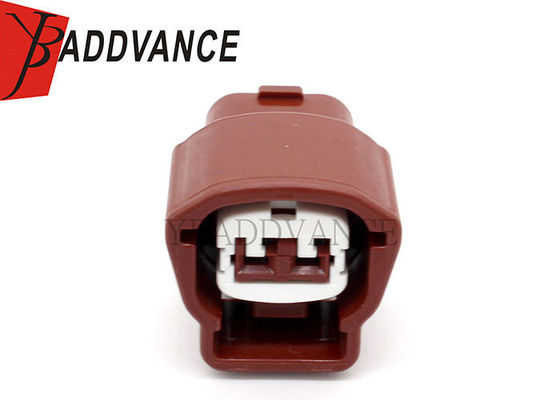

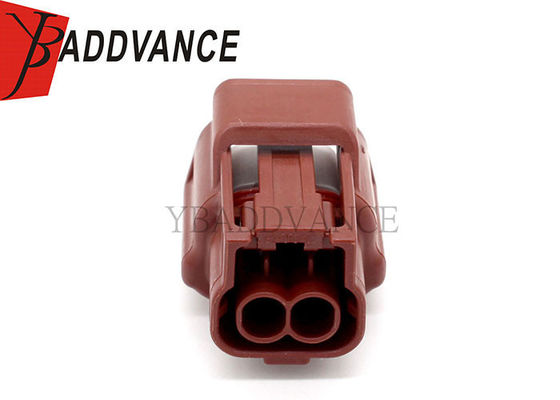

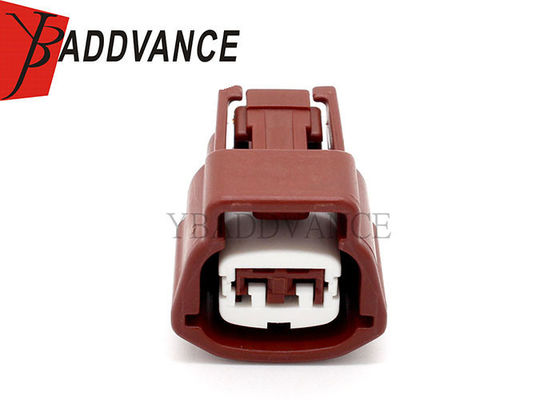

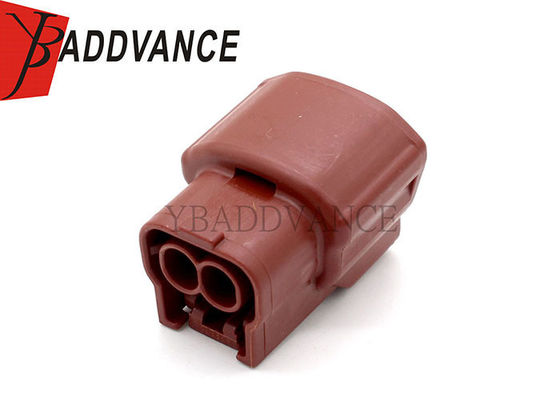

6189-0774 6918-1594 2 Pin RB S14-SR IAC Brown Sealed Connector For N-issan
Description
This part come with the following types:
RS series
Housing Device
2.3mm (090)
Sealed/Unsealed: sealed
Male/Female: F
Way: 2
Materials: PBT
Color: Brown
Application:For N-issan
Specification
| Product Name | 2 Pin RB S14-SR IAC Brown Sealed Connector |
| Delivery Time | About 3-7 days |
| Way | 2 Way |
| Wire Size | 16-22AWG |
| P/N | 6189-0774 6918-1594 |
| Gender | Female |
| MOQ | 100 units/lot |
| Sealed/Unsealed | Sealed |
| Color | Brown |
| Gross weight | 1.5kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Operating Temperature range | -40~120 |
| Contact resistance | Initial8m Max.after durability tests16m Ma |
| Leak current | Initial50kPa Min.after durability tests30kPa Min. |
| Insulation resistance | 100MΩ Min. |
| Including | Connector housing,terminals,rubber seals |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Material | PBT,Plastic PA66,pbt gf30 and so on... |
Hot products
| Sumitomo Connector | Pin number | Gender | Application |
| 6189-0647 | 4 Pin | Female | For T-PRS-Switch |
| 6189-7396 / 90980-12A88 | 1 Pin | Female | For Lexus Toyota |
| 6195-0038 | 8 Pin | DL 090 Female | |
| 6187-2171 | 2 Pin | Female | For Automotive |
| 6189-0134 6918-0332 | 8 Pin | HW 090 Female | |
| So on.. | ... | ... | ... |
| Deutsch Connector | Pin number | Gender | |
| DTM06-3S-E007 | 3 Pin | Female connector | |
| DTM06-2S-EE03 | 2 Pin | Female connector | |
| DT04-8P | 8 Pin | Male connector | |
| DTM04-12P | 12 Pin | Male connector | |
| So on.. | ... | ... | ... |
