Product Details:
Payment & Shipping Terms:
|
| Part-No.: | 6195-0021 | Pin: | 6 Pin |
|---|---|---|---|
| STYLE: | Sumitomo Sealed Connectors | Gender: | Female |
| HS CODE: | 8536909000 | Color: | Gray |
| Sealed/Unsealed: | Sealed | MOQ: | 100 Pcs |
| Gross Weight: | 2kgs/100pcs | Application: | For Car |
| High Light: | 6195-0021 Sumitomo Sealed Connectors,Throttle Pedal Sumitomo Sealed Connectors,6195-0021 sumitomo honda connectors |
||

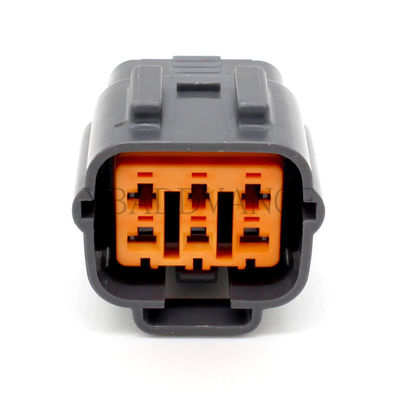

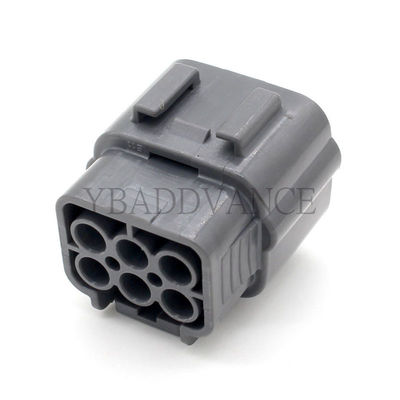

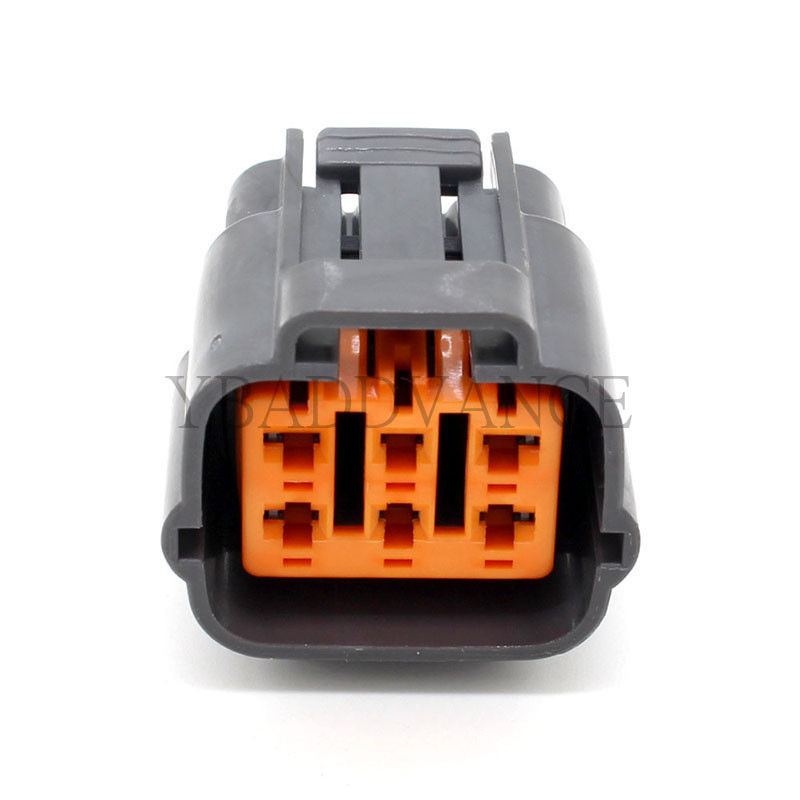

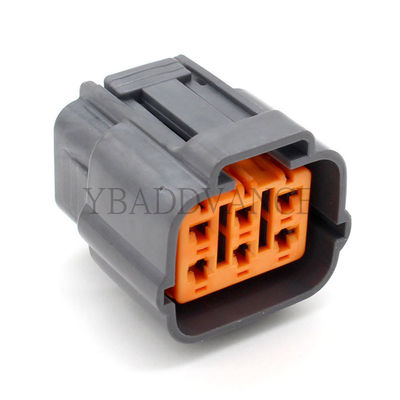

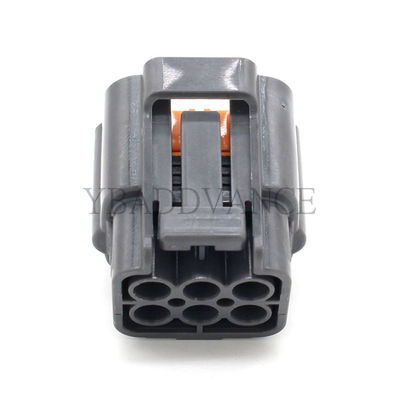

6195-0021 6 Pin DL Series Accelerator Throttle Pedal Female Sumitomo Connector
Description
This part come with the following types:
Connector type: housing
Faminly: DL sealed series
Part No.: 6195-0021
Connection type: wire to wire
Sealed/unsealed: sealed
Male/Female: Female
Way: 6
Pitch inches(mm): 2.3mm(090)
Material: PBT or low water absorption Nylon
Plating: -
Color: Dark Gray
Mating Part No.: 6195-0024
Specification
| Product Name | 6 Pin DL Series Accelerator Throttle Pedal Female Sumitomo Connector |
| Delivery Time | About 3-7 days |
| Way | 6 Way |
| Wire Size | 16-22AWG |
| P/N | 6195-0021 |
| Gender | Female |
| MOQ | 100 units/lot |
| Sealed/Unsealed | Sealed |
| Color | Gray |
| Gross weight | 1.5kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Operating Temperature range | -40~120 |
| Contact resistance | Initial8m Max.after durability tests16m Ma |
| Leak current | Initial50kPa Min.after durability tests30kPa Min. |
| Insulation resistance | 100MΩ Min. |
| Including | Connector housing,terminals,rubber seals |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Material | PBT,Plastic PA66,pbt gf30 and so on... |
