Product Details:
Payment & Shipping Terms:
|
| Number Of Positions: | 10 Pin | Part-No.: | GL221-10021 |
|---|---|---|---|
| Application: | For Automotive | Sealed/Unsealed: | Sealed |
| STYLE: | Waterproof Automotive Connectors | Color: | Black |
| Gender: | Male | Warranty: | One Year |
| Gross Weight: | 3kgs/100pcs | HS CODE: | 8536909000 |
| High Light: | GL221-10021 Waterproof Automotive Connectors,KUM 2.8 Waterproof Automotive Connectors,GL221-10021 automotive sensor connectors |
||

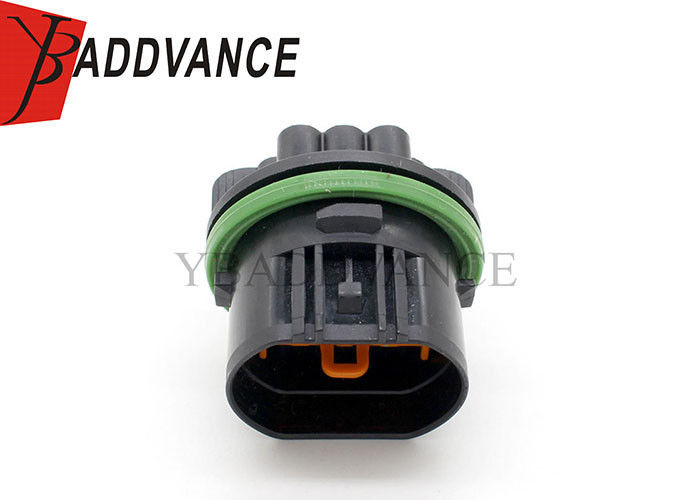

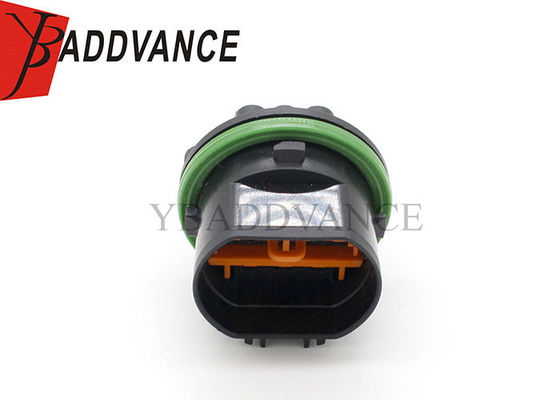

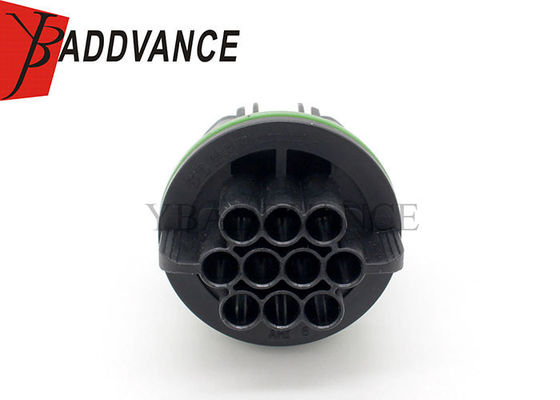

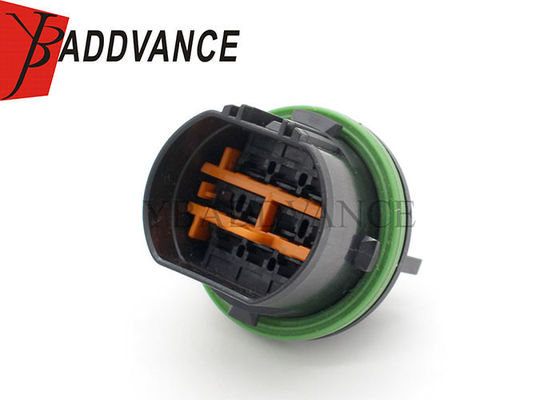

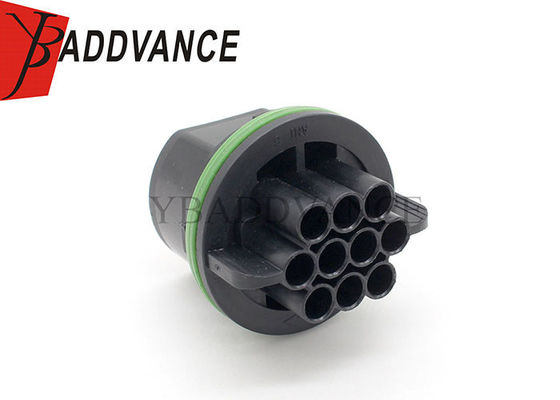

GL221-10021 10 Pin KUM 2.8 Headlamps LED Socket Sensor Connector
Specification
| Sealed/Unsealed | Sealed |
| Color | Black |
| Material | PBT,Plastic PA66,pbt gf30 and so on... |
| Quality Control | All goods will be 100% inspected before shipment |
| Wire Size | 16-22AWG |
| P/N | GL221-10021 |
| Operating Temperature range | -40~120 |
| Contact resistance | Initial8m Max.after durability tests16m Ma |
| Leak current | Initial50kPa Min.after durability tests30kPa Min. |
| Insulation resistance | 100MΩ Min. |
| MOQ | 100 units/lot |
| Product Name | 10 Pin KUM 2.8 Headlamps LED Socket Sensor Connector |
| Including | Connector housing,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Way | 10 Way |
| Delivery Time | About 3-7 days |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Gender | Male |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Gross weight | 1.5kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
Description
GL221-10021 10 Pin Male 2.8 Headlamps LED Socket Sensor Connector
This part come with the following types:
Brand: YBADDVANCE
Connector Style :Waterproof Automotive Connectors
Connector System : Cable-to-Cable
Number of Positions : 10
Sealed/Unsealed: Sealed
Gender: Male
Color:Black
MOQ:100pcs
Application:For Automotive
