Product Details:
Payment & Shipping Terms:
|
Connector Type: | Socket, Straight | Pin Size: | 2.8mm |
---|---|---|---|
Series: | Amp Tyco | Pins: | 6 Pin |
Part Number: | 282767-2 | Color: | Black |
Feature: | Waterproof | Gender: | Female |
PLACE OF ORIGIN: | Shaanxi,China | Type: | Amp Sensor Connectors |
High Light: | AMP Pedal Position Sensor Connector,282767-2,Accelerator Pedal Tyco AMP Connectors |

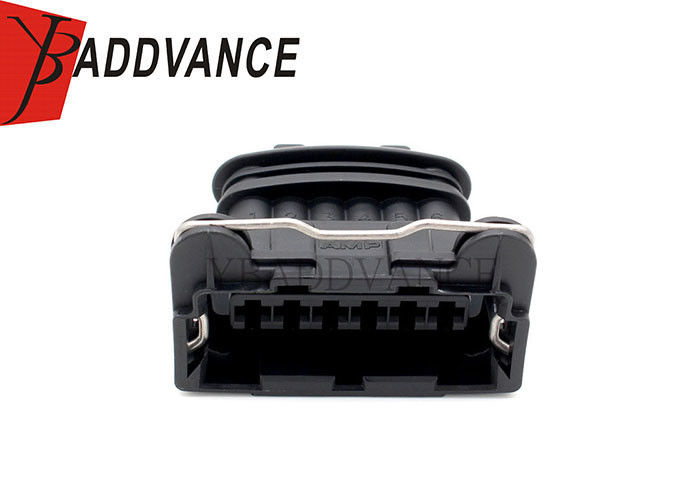

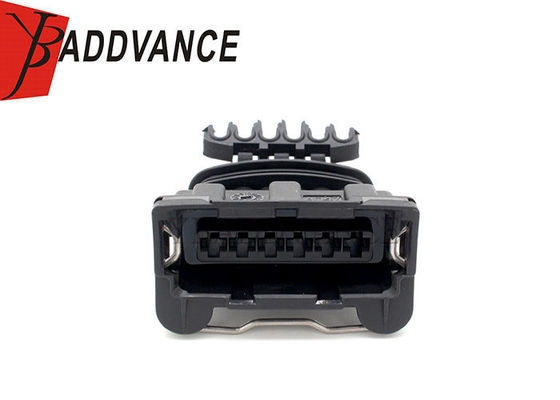

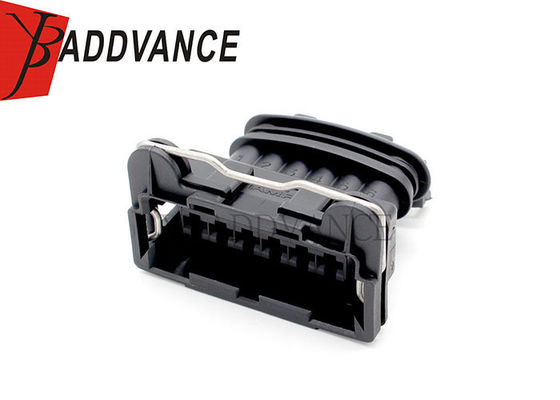

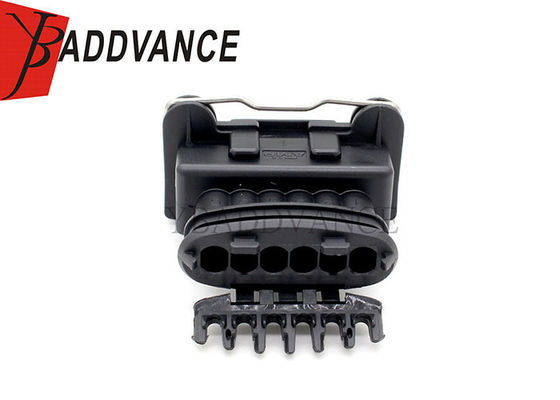

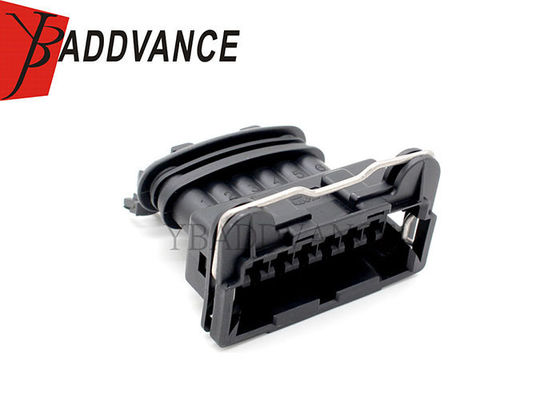

282767-2 AMP Female 6 Pin Accelerator Pedal Sensor Connector
Description
AMP Female 6 Pin Accelerator Pedal Sensor Connector
This connector kits come with terminals together and will be provided by YBADDVANCE.
It's in stock and we can post you right away.
Pin Number:6
Color: Black
Specification
Item name |
AMP Female 6 Pin Accelerator Pedal Sensor Connector |
P/N | 282767-2 |
Wire Size |
18-20AWG |
Operating Temperature range |
-40℃~125℃ |
Color |
Black |
Gender |
Female |
Design Tooling |
Sending us samples or drawing to design it |
Delivery Time |
About 5-8 work days |
Sealed/Unsealed |
sealed |
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
The number of hole | 6 Hole |
Color | Black |
Warranty | 1 year |
Application | Automoive Motorcycles |
More Connector
Amp Tyco Connector | Description | Fit For |
BC7014-3.5-21 | 1 pin 3.5 Series EV1 Female Fuel Injector Connector |
|
7-1866487-1 | 34 Pin Female Sealed ECU Connector Wire Loom A |
|
8E0972416 | 16 pin female | For VW Audi |
BC7039 |
6 pin female | For Truck |
770680-1 | 23 pin male | |
776231-1 | 35 pin male Straight | For Truck Bus |
1-1718806-1 | 5 pin female | |
368537-1 | 12 pin male | |
5273338 | 12 pin female 1.5K Series |
