Black Tyco AMP Connectors 8 Way Male Automotive Connectors 20-18 AWG 776538-1

Certification
China Xi'An YingBao Auto Parts Co.,Ltd certification
I'm Online Chat Now

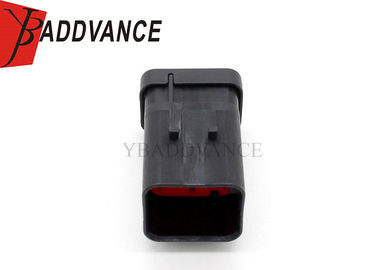

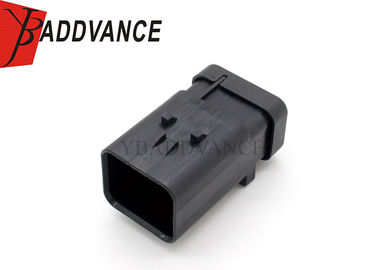

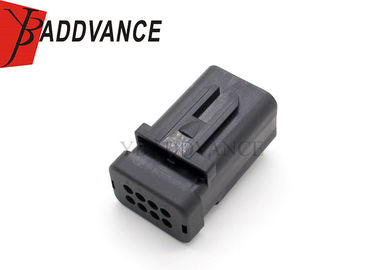

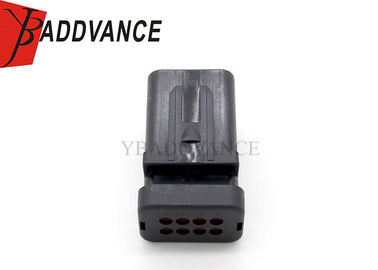

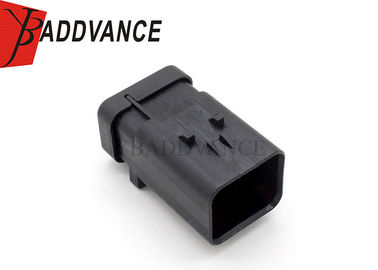

Black Tyco AMP Connectors 8 Way Male Automotive Connectors 20-18 AWG 776538-1

Black Tyco AMP Connectors 8 Way Male Automotive Connectors 20-18 AWG 776538-1
Black Tyco AMP Connectors 8 Way Male Automotive Connectors 20-18 AWG 776538-1 Black Tyco AMP Connectors 8 Way Male Automotive Connectors 20-18 AWG 776538-1 Black Tyco AMP Connectors 8 Way Male Automotive Connectors 20-18 AWG 776538-1 Black Tyco AMP Connectors 8 Way Male Automotive Connectors 20-18 AWG 776538-1 Black Tyco AMP Connectors 8 Way Male Automotive Connectors 20-18 AWG 776538-1

Large Image :  Black Tyco AMP Connectors 8 Way Male Automotive Connectors 20-18 AWG 776538-1

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: 776538-1

Payment & Shipping Terms:

Minimum Order Quantity: 100 units
Price: Negotiation
Packaging Details: Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,PayPal , credit card
Supply Ability: 50,000 units/moth
Detailed Product Description
Connector Type: Socket, Straight Current: Up To 13 Amps
Gender: Male Part Number: 776538-1
Color: Black Pins: 8
Series: AMPSEAL 16 Feature: Waterproof
PLACE OF ORIGIN: Shaanxi,China Type: Amp Connectors
High Light:

tyco superseal connectors

,

tyco circular connectors

AMPSEAL 16 Series 8 Way Male Automotive Connectors 20-18 AWG 776538-1





Specification



Item name

AMPSEAL 16 Series 8 Way Male Automotive Connectors 20-18 AWG
P/N 776538-1

Wire Size

18-20AWG

Operating Temperature range

-40℃~125℃

Width

47.55 mm [ 1.872 in ]

Height

26.65 mm [ 1.049 in ]
Depth

28.6 mm [ 1.126 in ]

Row-to-Row Spacing

5.3 mm [ .209 in ]

Delivery Time

About 5-8 work days

Sealed/Unsealed

Sealed

Leak current

Initial50kPa Min.after durability tests30kPa Min.
The number of hole  8 Hole
Color  Black
Warranty 1 year
Application Automoive Motorcycles





Description



AMPSEAL 16 Series 8 Way Male Automotive Connectors 20-18 AWG



This connector kits come with terminals together and will be provided by YBADDVANCE.



It's in stock and we can post you right away.



Mating Pin Diameter : 1.5 mm [ .059 in ]


Centerline (Pitch) : 4.5 mm [ .177 in ]


Connector System : Wire-to-Wire





More Connector



Amp Tyco Connector Description Fit For
BC7014-3.5-21 1 pin 3.5 Series EV1
Female Fuel Injector Connector

7-1866487-1 34 Pin Female Sealed
ECU Connector Wire Loom A

8E0972416 16 pin female For VW Audi

BC7039
6 pin female For Truck
770680-1 23 pin male
776231-1 35 pin male Straight For Truck Bus
1-1718806-1 5 pin female
368537-1 12 pin male
5273338 12 pin female 1.5K Series





Product Picture Details



Black Tyco AMP Connectors 8 Way Male Automotive Connectors 20-18 AWG 776538-1 0Black Tyco AMP Connectors 8 Way Male Automotive Connectors 20-18 AWG 776538-1 1
