Xi'An YingBao Auto Parts Co.,Ltd
-------------------------- Professional Supplier
Product Details:
Payment & Shipping Terms:
|
| Pin: | 3 Pin | Application: | For Truck / Bus |
|---|---|---|---|
| Gender: | Female And Male | Part-No.: | DT06-3S-P006 DT04-3P-CE01 |
| Color: | Gray | Gross Weight: | 1.5kgs/100pcs |
| STYLE: | Deutsch 3 Pin Male Female Connector | Sealed/Unsealed: | Sealed |
| HS CODE: | 8536909000 | Warranty: | One Year |
| High Light: | deutsch waterproof connectors,deutsch dt series connectors |
||

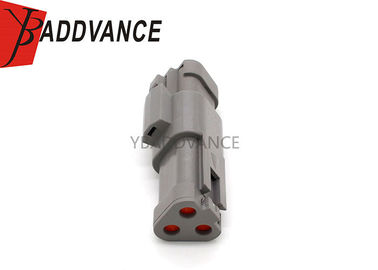

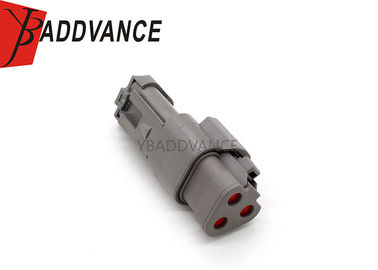

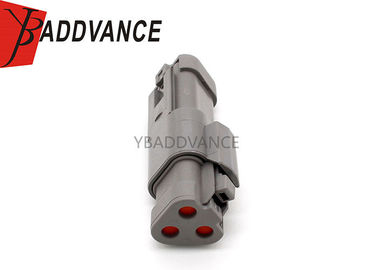

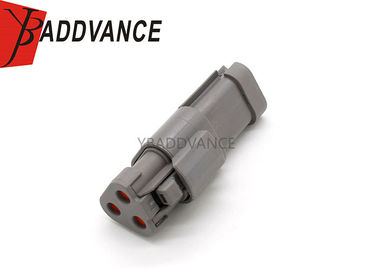

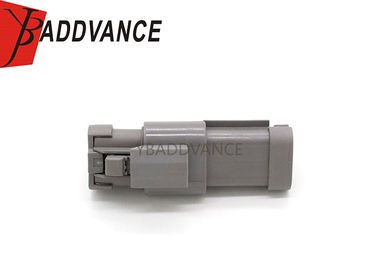

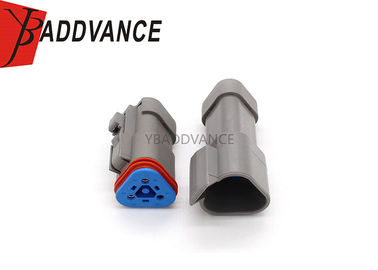

Deutsch 3 Pin Male Female Connector With Solid Rear Grommet DT04-3P-CE01 DT06-3S-P006
Specification
| Product Name | 3 Pin Male Female Connector With Solid Rear Grommet |
| Way | 3 Way |
| P/N | DT04-3P-CE01 DT06-3S-P006 |
| Gender | Female and male |
| Sealed/Unsealed | Sealed |
| Color | Gray |
| Material | PBT,Plastic PA66,pbt gf30 and so on... |
| Quality Control | All goods will be 100% inspected before shipment |
| Wire Size | 16-20AWG |
| Operating Temperature range | -40~120 |
| Contact resistance | Initial8m Max.after durability tests16m Ma |
| Leak current | Initial50kPa Min.after durability tests30kPa Min. |
| Insulation resistance | 100MΩ Min. |
| MOQ | 100 units/lot |
| Including | Connector housing,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Delivery Time | About 3-7 days |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Gross weight | 1.5kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
Description
Deutsch 3 Pin Male Female Connector With Solid Rear Grommet DT04-3P-CE01 DT06-3S-P006
This part come with the following types:
Connector: Deutsch 3 Pin Male Female Connector
Included: terminals seals and endcap
Type: adapter
Series:DT Series
Wire Gauge:20-16 AWG
Application:For Truck / Bus
Hot products
| Deutsch Connector | Pin number | Gender | Application |
| DT04-2P-CE04 | 2 Pin | Male connector | For Truck / Bus |
| DTM06-2S-EE03 | 2 Pin | Female connector | For Truck / Bus |
| DT04-8P | 8 Pin | Male connector | For Truck / Bus |
| DTM06-3S-E007 | 3 Pin | Female connector | For Truck / Bus |
| DTM04-12P | 12 Pin | Male connector | For Truck / Bus |
| DT06-12SA-CE01 | 12 Pin | Female connector | For Truck / Bus |
| DT04-4P-CE04 | 4 Pin | Male connector | For Truck / Bus |
| So on.. | ... | ... | ... |
