Product Details:
Payment & Shipping Terms:
|
| Gender: | Female To Male | Color: | Black |
|---|---|---|---|
| Way: | 2 Way | P/N: | BC7041 |
| Type: | Wire Harness | Warranty: | 1 Year |
| HS Code: | 8536909000 | Martial: | PBT/PA66 |
| Feature: | With Wire 11CM | Standard: | OEM Standard |
| High Light: | automotive wiring harness,automotive wire connectors,car wiring harness |
||

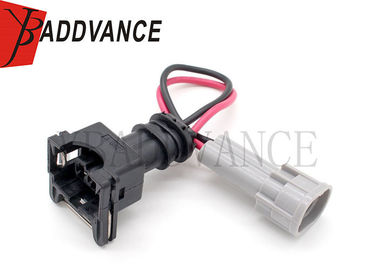

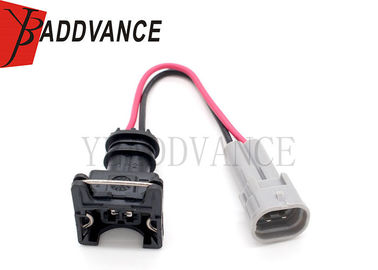

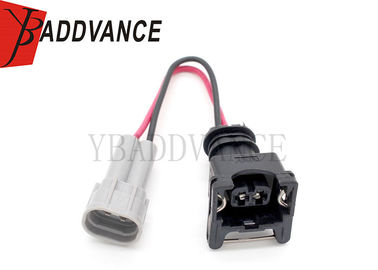

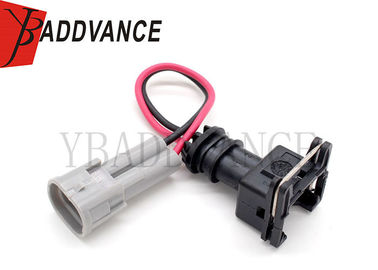

Fuel Injector Adapter Female To Male EV1 To Denso 2 Pin Cable Harness
Description
Fuel Injector Adapter Female To Male EV1 To Denso 2 Pin Cable Harness
Number of Row : 1 Row
Number of Pins: 2 Position
These work in OBD2: Integra's / Prelude's / RSX's / S2000's. Pretty much ANY 96-UP HONDA
Works with any Honda OBD 1, most RC, Precision, Ford, etc. aftermarket injectors
Many high performance fuel injectors use the EV1 connector including Bosch, Ford, RC, Precision, Delphi Multecs and more.
If planning on using the OEM Honda OBD-1 injectors, you will need to trim the ridges in the corners of the injectors. The other common injectors are plug and play.
Specification
|
Item name |
Fuel Injector Adapter Female To Male EV1 To Denso 2 Pin Cable Harness |
| P/N | BC7041 |
|
Wire Size |
18-22AWG |
|
Wire Length |
11 CM |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
2 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 2 way |
| Color | Black |
| Warranty | 1 year |
| Application | For Toyota, Mazda, Subaru, Mitsubishi, Hyundai, Nissan |
