Product Details:
Payment & Shipping Terms:
|
| HS Code: | 8536909000 | P/N: | 64334-0100 0643340100 |
|---|---|---|---|
| Martial: | PBT/PA66 | Gender: | Male |
| Type: | Auto Connector | Color: | Black |
| Feature: | Waterproof | Way: | 32 Way |
| High Light: | rh connector,waterproof auto electrical connectors |
||
64334-0100 0643340100 Molex 32 Pin Male CMC 64334 Series Connector
Description
Molex 32 Pin Male CMC 64334 Series Connector
Height : 24.9 mm
Width : 59.91 mm
Depth : 49mm
CMC Hybrid Connector, PCB Headers
These CMC hybrid PCB Wire-to-Board Headers are right angle mount and can used for to three different terminal sizes; 0.63mm, 1.50mm and 2.80 mm.
For mating connectors numbers 723-9347 or 723-9359 or 774-8144 typically.
Pictures are for reference and may not be fully indicative of the specific product.
Specification
|
Item name |
64334-0100 0643340100 Molex 32 Pin Male CMC 64334 Series Connector |
| P/N | 64334-0100 0643340100 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
32 pin Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 32 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automotive Motorcycles |

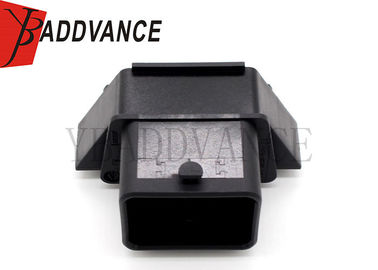

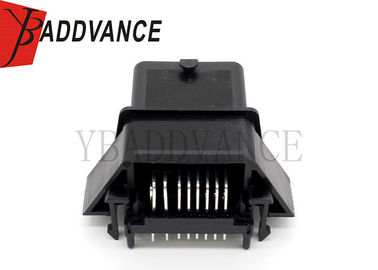

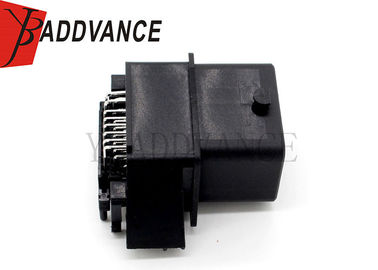

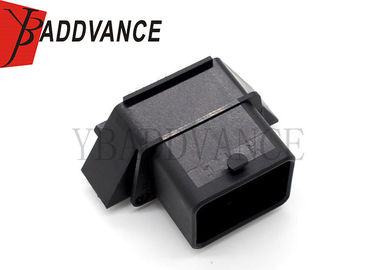

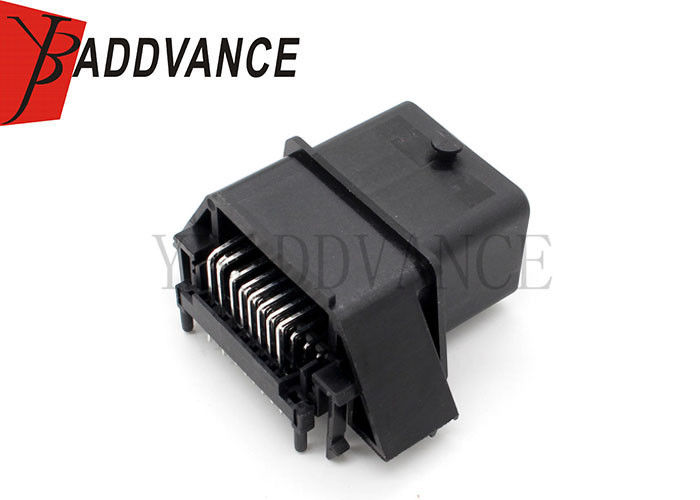

Product Picture Details
Product
We endeavour to hold adequate stock of all of our products since some clients can not predict their require of our product,we will do our best to keep enough stock. We aim to constantly expand our product base to provide the market with a comprehensive source for all of their connector needs.
Team
We have a professional team that includes salesman,engineers,workshop workers and our own shipping agency.
Equipment
There are more than 1000 pairs of mold that designed by ourself.
Quality
We 100% promise to provide you the Highest Quality Components. Some of items are original ,but most are from our own factory.
After sale
If there were any quality problems ,we will post you brand new to meet your requirements.
