Product Details:
Payment & Shipping Terms:
|
| P/N: | 829441-1 1928401920 037 906 240 15327868 | Martial: | PBT/PA66 |
|---|---|---|---|
| Color: | Black | Gender: | Female |
| Type: | Auto Connector | Feature: | Waterproof |
| HS Code: | 8536909000 | Way: | 2 Way |
| High Light: | tyco superseal connectors,tyco circular connectors |
||

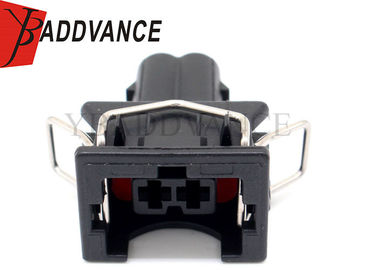

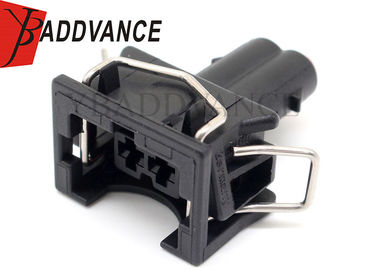

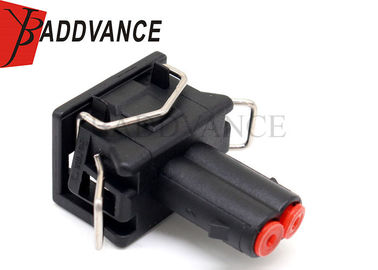

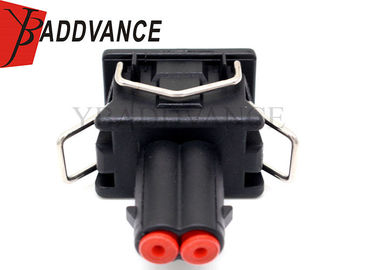

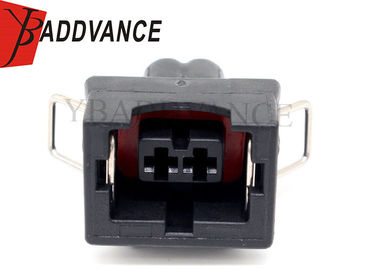

829441-1 1928401920 15327868 2 Way Tyco EV1 Fuel Injector Connector
Description
2 Way Tyco EV1 Fuel Injector ConnectorSeries : LKS 1.5
Series: 2.8 Timer Sealed
It is used for V W,K ostal ,VAG
Suitable terminals:
- 000979021E
- 000979133E
- 000979225E
If you have any questions and concerns , please let me know
Specification
|
Item name |
829441-1 1928401920 15327868 2 Way Tyco EV1 Fuel Injector Connector |
| P/N | 829441-1 1928401920 037 906 240 15327868 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
2 pin waterproof Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 2 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automotive Motorcycles |
