Product Details:
Payment & Shipping Terms:
|
| P/N: | 144998-5 | Way: | 4 Way |
|---|---|---|---|
| Color: | White | Gender: | Female |
| WARRANTY: | 1 Year | Type: | Sealed Connector |
| Martial: | PBT/PA66 | HS Code: | 8536909000 |
| Feature: | Waterproof | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | tyco superseal connectors,tyco circular connectors |
||
144998-5 4 Way TE Connectivity AMP Timer Oxygen Sensor Connector
Description
4 Way TE Connectivity AMP Timer Oxygen Sensor Connector
Height : 21.5mm
Length : 37.4 mm
Width : 37.75 mm
Pitch : 5 mm
Housing: PA66Lock: PA66
Terminal: Brass/Phosphor Bronze
Seal: Silicon Rubber
Timer connector are available with a wide range of cavity options from power to high pin density PCB connections.
The connector accept Timer contacts and are available in both pin and receptacle housings.
Specification
|
Item name |
144998-5 4 Way TE Connectivity AMP Timer Oxygen Sensor Connector |
| P/N | 144998-5 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
4 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 4 way |
| Color | White |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

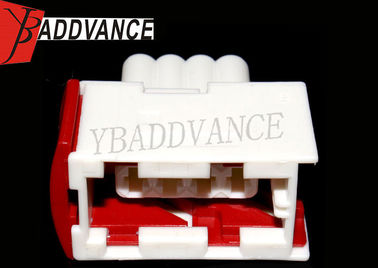

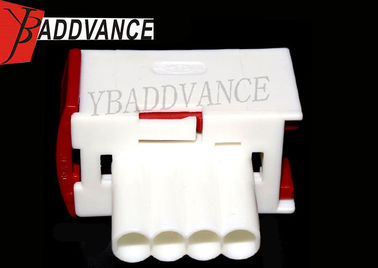

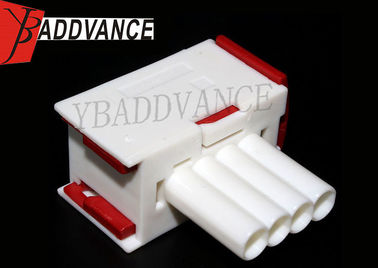

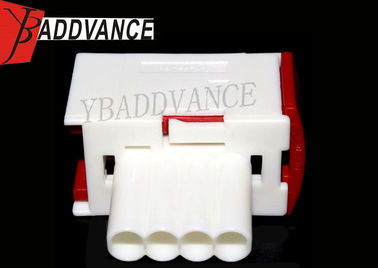

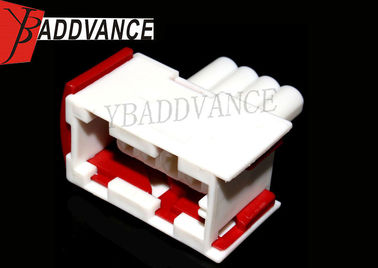

Product Picture Details
