Product Details:
Payment & Shipping Terms:
|
| P/N: | JST-03T-JWPF-VSLE | Way: | 3 Way |
|---|---|---|---|
| Color: | White | Gender: | Male |
| WARRANTY: | 1 Year | Type: | Sealed Connector |
| Martial: | PBT/PA66 | HS Code: | 8536909000 |
| Feature: | Waterproof | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | 2 pin sealed connector,waterproof auto electrical connectors |
||
JST-03T-JWPF-VSLE 3 Pole JST KTM Turn Signal Lighting Connector
Description
3 Pole JST KTM Turn Signal Lighting Connector
Housing Color:White
Height : 8.4mm
Length : 25.8 mm
Width : 9 mm
Pitch:2 mm
Mating parts: JST-03R-JWPF-VSLE
Material:Nylon , Plastic
Number of Row: 1
For Use With: JWPF Series Tab Contacts
Specification
|
Item name |
JST-03T-JWPF-VSLE 3 Pole JST KTM Turn Signal Lighting Connector |
| P/N | JST-03T-JWPF-VSLE |
|
Wire Size |
22-26AWG |
|
Operating Temperature range |
-55℃~85℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 way |
| Color | White |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

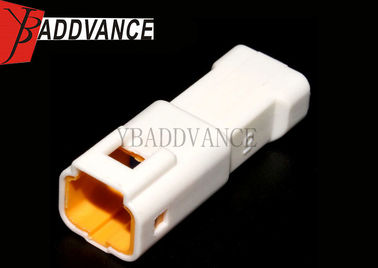

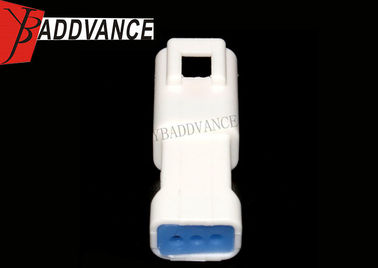

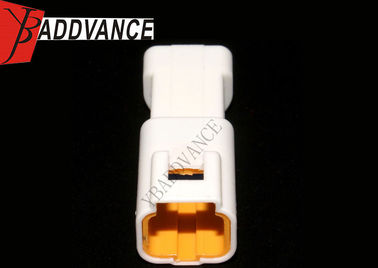

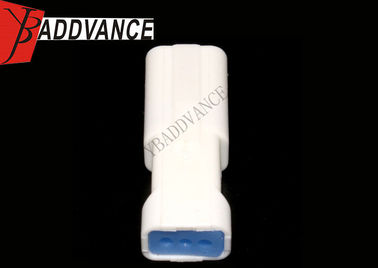

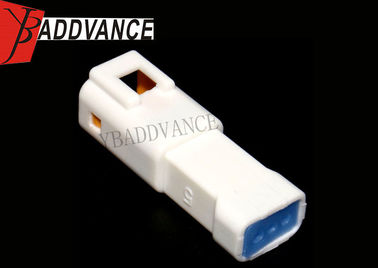

Product Picture Details
