Home ProductsSumitomo Sealed Connectors

MT 090 Series Sealed Speed Sensor Connector 6187-3231 For Automoive Motorcycles

Certification
China Xi'An YingBao Auto Parts Co.,Ltd certification
I'm Online Chat Now

MT 090 Series Sealed Speed Sensor Connector 6187-3231 For Automoive Motorcycles

MT 090 Series Sealed Speed Sensor Connector 6187-3231 For Automoive Motorcycles
MT 090 Series Sealed Speed Sensor Connector 6187-3231 For Automoive Motorcycles MT 090 Series Sealed Speed Sensor Connector 6187-3231 For Automoive Motorcycles MT 090 Series Sealed Speed Sensor Connector 6187-3231 For Automoive Motorcycles MT 090 Series Sealed Speed Sensor Connector 6187-3231 For Automoive Motorcycles MT 090 Series Sealed Speed Sensor Connector 6187-3231 For Automoive Motorcycles

Large Image :  MT 090 Series Sealed Speed Sensor Connector 6187-3231 For Automoive Motorcycles

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: 6187-3231

Payment & Shipping Terms:

Minimum Order Quantity: 100 units
Price: Negotiation
Packaging Details: Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,PayPal , credit card
Supply Ability: 50,000 units/moth
Detailed Product Description
P/N: 6187-3231 Way: 3 Way
Color: White Gender: Male
WARRANTY: 1 Year Type: Sealed Connector
Martial: PBT/PA66 HS Code: 8536909000
Feature: Waterproof PLACE OF ORIGIN: Shaanxi,China
High Light:

sumitomo mt connector

,

sumitomo electric connectors

6180-3241 3 Way Female Sumitomo MT Series Waterproof Connector





Description



3 Way Female Sumitomo MT Series Waterproof Connector
Terminals Fit wire size .5 - 1.3 mm (16-22 AWG)

Height : 17.8 mm

Length : 36 mm

Width : 17.8mm

Mating parts: 6180-3241
It comes with Terminals and seals
Waterproof Connector Housing with Inner Seal, and Wire Seals

This white triangular sealed motorcycle wiring connector used on speed and gear sensors on motorcycle wiring looms. it allso used on other vehicle wiring.









Specification



Item name

6187-3231 3 Pole MT 090 2.3mm Series Sealed Speed Gear Sensor Connector
P/N 6187-3231

Wire Size

18-22AWG

Operating Temperature range

-40℃~125℃

Insulation resistance

100M Min.

MOQ

100 units/lot
Key words

3 pin Sealed Connector

Design Tooling

Sending us samples or drawing to design it

Delivery Time

About 5-8 work days

Sealed/Unsealed

sealed

Leak current

Initial50kPa Min.after durability tests30kPa Min.
The number of hole  3 way
Color  White
Warranty 1 year
Application Automoive Motorcycles

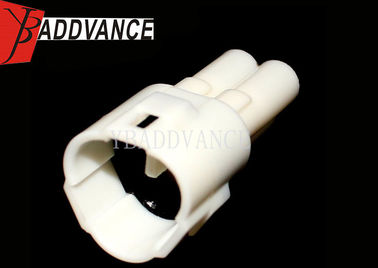

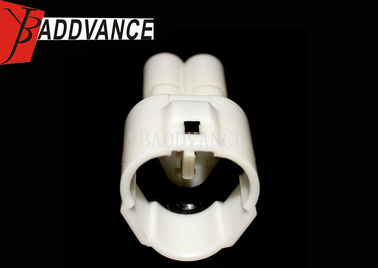

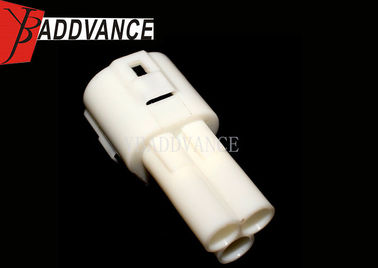

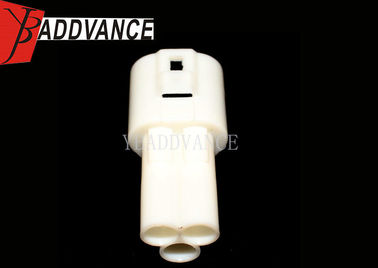

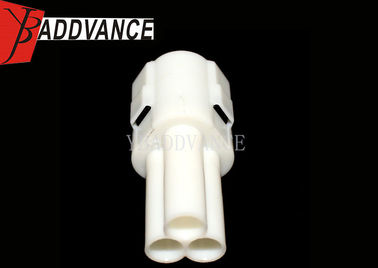

Product Picture Details



MT 090 Series Sealed Speed Sensor Connector 6187-3231 For Automoive Motorcycles 0

MT 090 Series Sealed Speed Sensor Connector 6187-3231 For Automoive Motorcycles 1

MT 090 Series Sealed Speed Sensor Connector 6187-3231 For Automoive Motorcycles 2
