Product Details:
Payment & Shipping Terms:
|
| P/N: | 282991-3 | Way: | 20 Way |
|---|---|---|---|
| Color: | Blue | Gender: | Female |
| WARRANTY: | 1 Year | Type: | Sealed Connector |
| Martial: | PBT/PA66 | HS Code: | 8536909000 |
| Feature: | Waterproof | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | tyco superseal connectors,tyco circular connectors |
||
282991-3 20 Pin Blue TE Connectivity AMP Connector For Trucks
Description
20 Pin Blue TE Connectivity AMP Connector For Trucks
2 Row, 20 Position
Height : 25.6 mm
Width : 17 mm
Length : 48.7 mm
Pitch: 5.5 mm
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 30 C
Specification
|
Item name |
282991-3 20 Pin Blue TE Connectivity AMP Connector For Trucks |
| P/N | 282991-3 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
20 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 20 way |
| Color | Blue |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

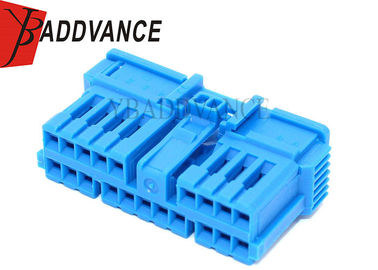

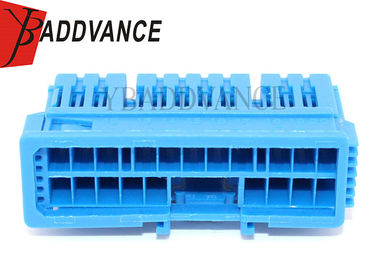

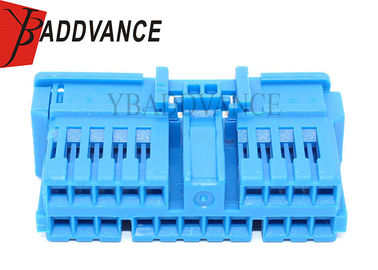

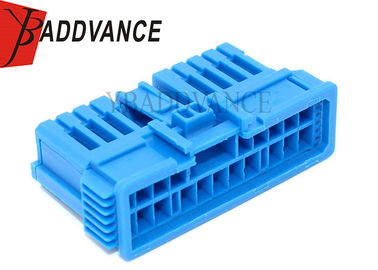

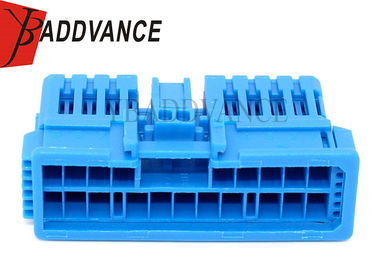

Product Picture Details
