Product Details:
Payment & Shipping Terms:
|
| P/N: | 6070-2611 | Way: | 2 Way |
|---|---|---|---|
| WARRANTY: | 1 Year | Gender: | Female |
| Color: | White | Type: | Auto Connector |
| Martial: | PBT/PA66 | HS Code: | 8536909000 |
| Feature: | Unsealed | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | sumitomo 2 pin connector,sumitomo terminal connector |
||
6070-2611 2 Way Sumitomo 250 Type Female Non-sealed Connector
Description
2 Way Sumitomo 250 Type Female Non-sealed Connector
Mating Connector : 6070-2621
Height : 15.5 mm
Width : 10 mm
Length : 25 mm
Materials: 66 Nylon
Please contact us without hesitation if you have any concerns
Specification
|
Item name |
6070-2611 2 Way Sumitomo 250 Type Female Non-sealed Connector |
| P/N | 6070-2611 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
2 pin Unsealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
Unsealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 2 way |
| Color | White |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

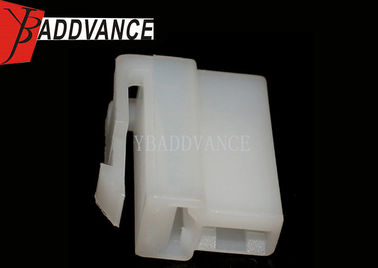

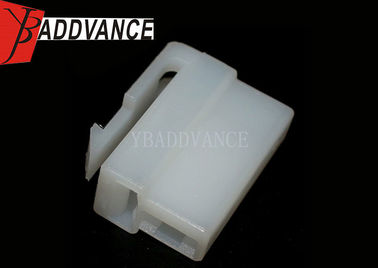

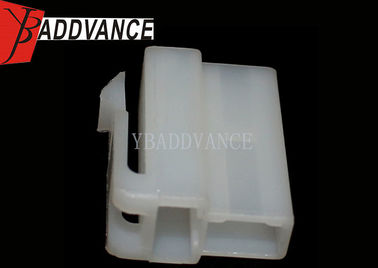

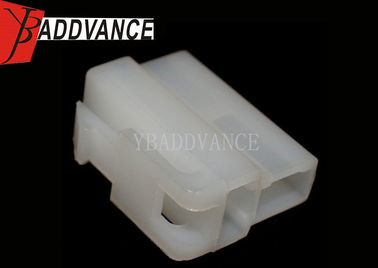

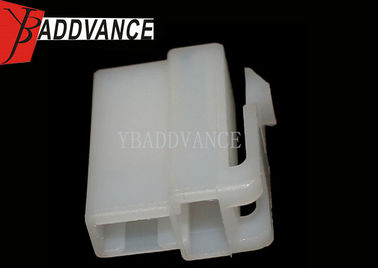

Product Picture Details
