Product Details:
Payment & Shipping Terms:
|
| P/N: | 39-01-2120 39012120 5557-12P | Way: | 12 Way |
|---|---|---|---|
| WARRANTY: | 1 Year | Gender: | Female |
| Color: | White | Type: | Auto Connector |
| Martial: | PBT/PA66 | HS Code: | 8536909000 |
| Feature: | Unsealed | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | 2 pin sealed connector,rh connector |
||
39-01-2120 39012120 5557-12P 12 Pin Molex Nylon Mini-Fit Jr Connector
Description
12 Pin Molex Nylon Mini-Fit Jr Connector
Row: 2 Row
Number of position: 12 way
Height:19.6mm
Width:15.1mm
Length:26.4mm
Pitch:4.2mm
Series : Mini-Fit Jr. 5557 Series
Mini-Fit Junior 4.2 mm pitch connector housings form part of the Mini-Fit Junior power connector’s interconnection system.
Molex connector housings can be used in applications that require design flexibility.
Specification
|
Item name |
39-01-2120 39012120 5557-12P 12 Pin Molex Nylon Mini-Fit Jr Connector |
| P/N | 39-01-2120 39012120 5557-12P |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
12 pin Unsealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
Unsealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 12 way |
| Color | White |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

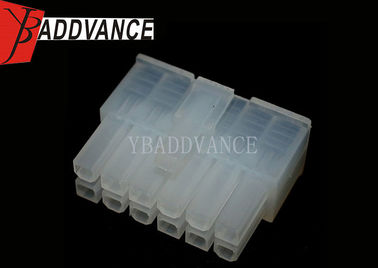

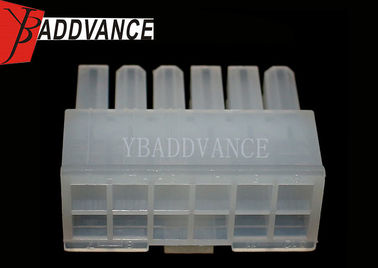

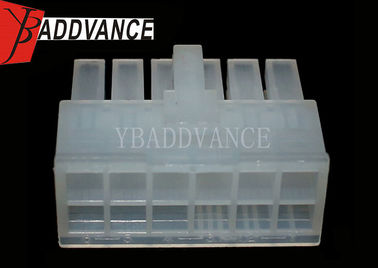

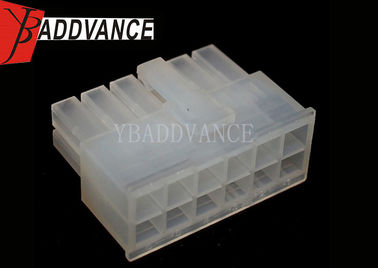

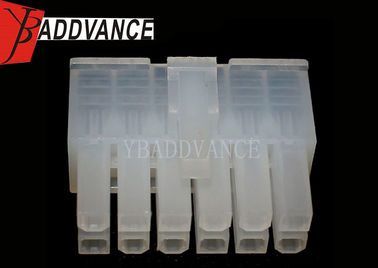

Product Picture Details
