Product Details:
Payment & Shipping Terms:
|
| P/N: | 6189-0029 | Way: | 6 Way |
|---|---|---|---|
| WARRANTY: | 1 Year | Gender: | Female |
| Color: | Grey | Type: | Sealed Connector |
| Martial: | PBT/PA66 | HS Code: | 8536909000 |
| Feature: | Waterproof | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | sumitomo 2 pin connector,sumitomo 4 pin connector |
||
6189-0029 6 Way Female Sumitomo MT 090 Sealed Series Connector
Description
6 Way Female Sumitomo MT 090 Sealed Series Connector
Height:29.1mm
Width:31.1mm
Length:23mm
Related part : 2.3mm 7160-8234
Application:
S uzuki ECU ICM CDI Ignitor connector on some GSXR750
It included : 1 Housing +1 Inner seal+6 wire seals +6 Pins
Specification
|
Item name |
6189-0029 6 Way Female Sumitomo MT 090 Sealed Series Connector |
| P/N | 6189-0029 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
6 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 6 way |
| Color | Grey |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

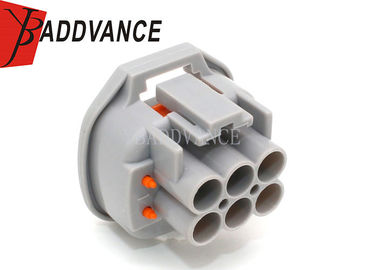

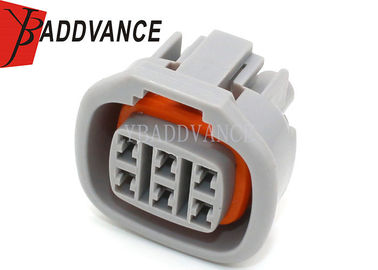

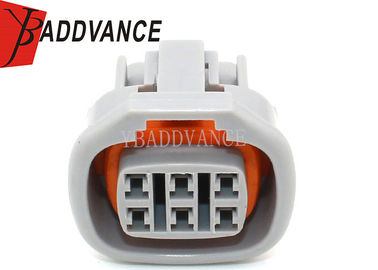

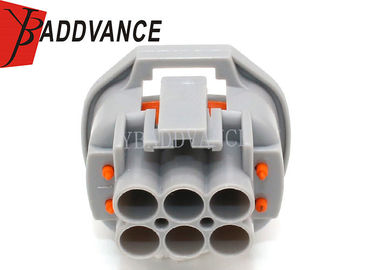

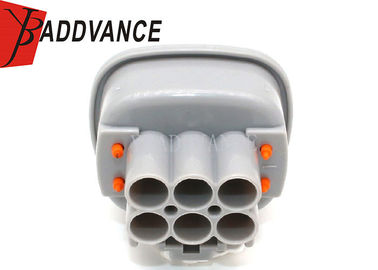

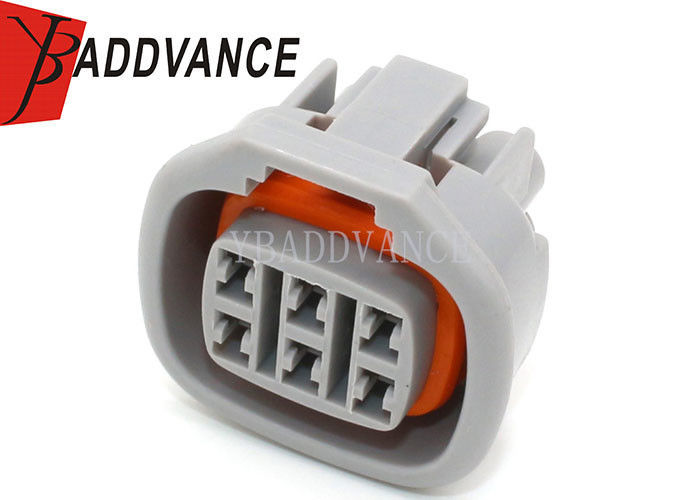

Product Picture Details
