2 Way Male Deutsch Automotive Connectors DT04-2P-E008 With Heat Shrink End

2 Way Male Deutsch Automotive Connectors DT04-2P-E008 With Heat Shrink End
2 Way Male Deutsch Automotive Connectors DT04-2P-E008 With Heat Shrink End 2 Way Male Deutsch Automotive Connectors DT04-2P-E008 With Heat Shrink End 2 Way Male Deutsch Automotive Connectors DT04-2P-E008 With Heat Shrink End 2 Way Male Deutsch Automotive Connectors DT04-2P-E008 With Heat Shrink End 2 Way Male Deutsch Automotive Connectors DT04-2P-E008 With Heat Shrink End

Large Image :  2 Way Male Deutsch Automotive Connectors DT04-2P-E008 With Heat Shrink End

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: DT04-2P-E008

Payment & Shipping Terms:

Minimum Order Quantity: 100 units
Price: Negotiation
Packaging Details: Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,PayPal , credit card
Supply Ability: 50,000 units/moth
Detailed Product Description
P/N: DT04-2P-E008 Way: 2 Way
WARRANTY: 1 Year Gender: Female
Color: Grey Type: Sealed Connector
Feature: Waterproof HS Code: 8536909000
Martial: PBT/PA66 PLACE OF ORIGIN: Shaanxi,China
High Light:

deutsch dt series connectors

,

te connectivity deutsch connectors

DT04-2P-E008 2 Way Male Deutsch DT Series Connector With Heat shrink End





Description



2 Way Male Deutsch DT Series Connector With Heat shrink End

It has been adapted to securely accept heatshrink tubing.

Height :17.35mm

Width :17.02mm

Length : 56.03mm

Wire Size (AWG) : 14, 16, 18, 20
Wire Size (mm²) : 0.5-2.0

The DT Series connector provide superior electrical properties and weather resistance in an attractive, economical and user friendly product.









Specification



Item name

DT04-2P-E008 2 Way Male Deutsch DT Series Connector With Heat shrink End
P/N DT04-2P-E008

Wire Size

18-22AWG

Operating Temperature range

-40℃~125℃

Insulation resistance

100M Min.

MOQ

100 units/lot
Key words

2 pin Sealed Connector

Design Tooling

Sending us samples or drawing to design it

Delivery Time

About 5-8 work days

Sealed/Unsealed

sealed

Leak current

Initial50kPa Min.after durability tests30kPa Min.
The number of hole  2 way
Color  Grey
Warranty 1 year
Application Automoive Motorcycles









Product Picture Details

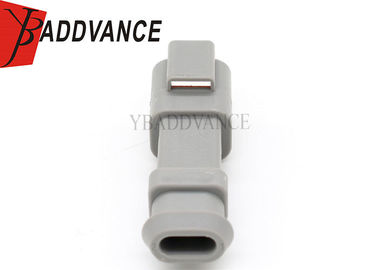

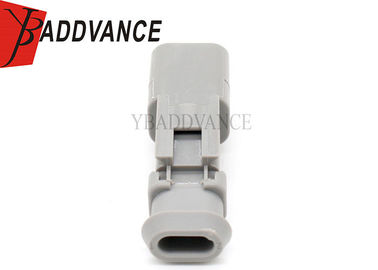

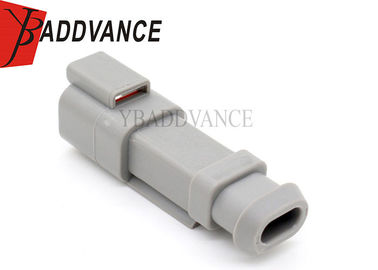

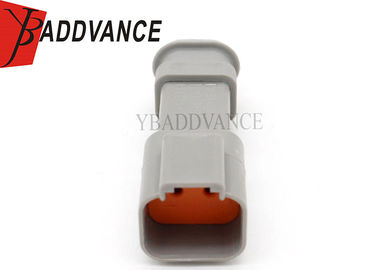

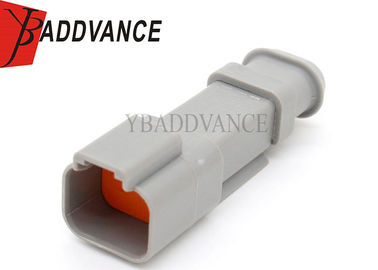

2 Way Male Deutsch Automotive Connectors DT04-2P-E008 With Heat Shrink End 0

2 Way Male Deutsch Automotive Connectors DT04-2P-E008 With Heat Shrink End 1

2 Way Male Deutsch Automotive Connectors DT04-2P-E008 With Heat Shrink End 2
