Product Details:
Payment & Shipping Terms:
|
| P/N: | 12004943 | Way: | 4 Way |
|---|---|---|---|
| WARRANTY: | 1 Year | Gender: | Female |
| Color: | Black | Type: | Sealed Connector |
| Feature: | Waterproof | HS Code: | 8536909000 |
| Martial: | PBT/PA66 | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | automotive waterproof electrical connectors,maf sensor connector |
||

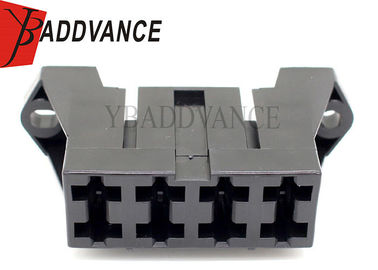

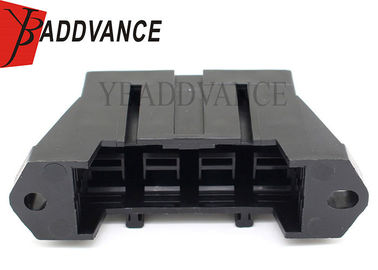

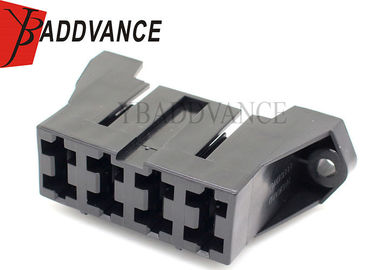

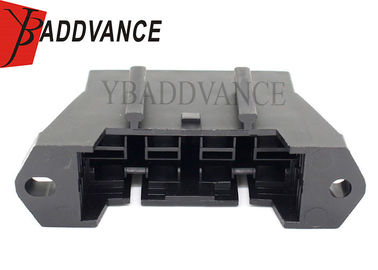

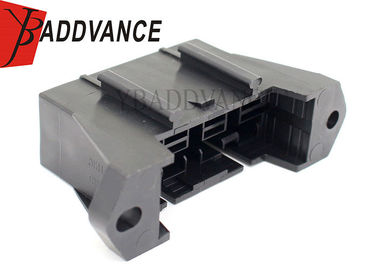

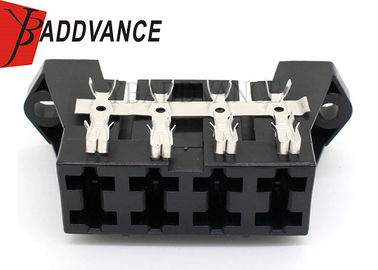

12004943 4 Way Parkard Fuse Block Body Panel For LS1 LS6 Vortec Motor
Description
4 Way Parkard Fuse Block Body For LS1 LS6 Vortec Motor
It is used for ATO/ATC type fuses
Related Terminal : 12004571
Mounting Style: Panel
Series: Pack-Con III
Please contact us without hesitation if you have any concerns
Specification
|
Item name |
12004943 4 Way Parkard Fuse Block Body Panel For LS1 LS6 Vortec Motor |
| P/N | 12004943 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
4 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 4 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |
