Product Details:
Payment & Shipping Terms:
|
| P/N: | 15300027 15363982 | Way: | 2 Way |
|---|---|---|---|
| WARRANTY: | 1 Year | Gender: | Female |
| Color: | Black | Type: | Sealed Connector |
| Feature: | Waterproof | HS Code: | 8536909000 |
| Martial: | PBT/PA66 | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | automotive waterproof electrical connectors,maf sensor connector |
||

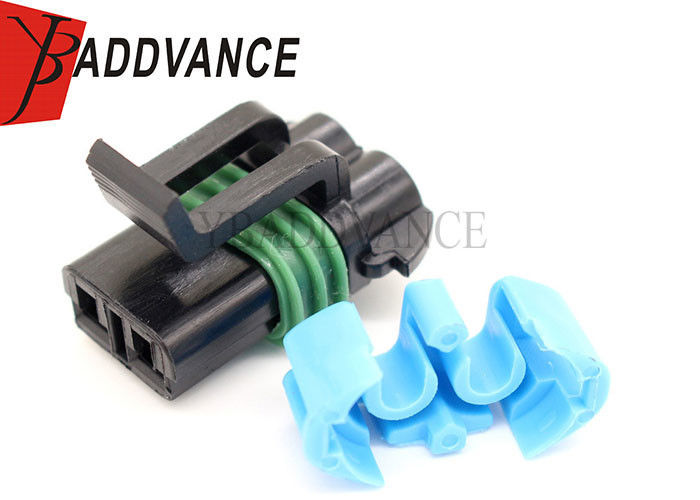

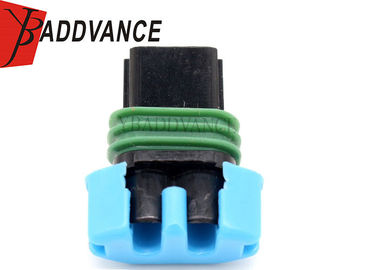

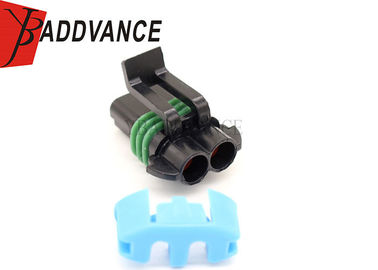

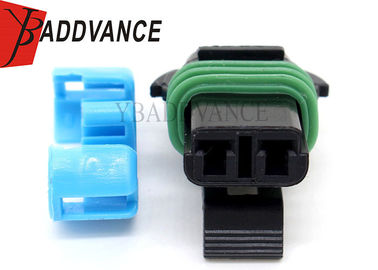

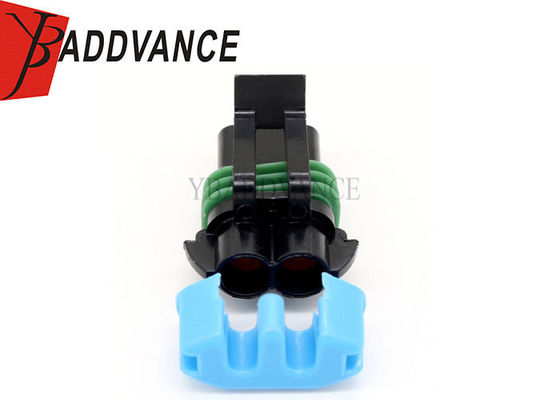

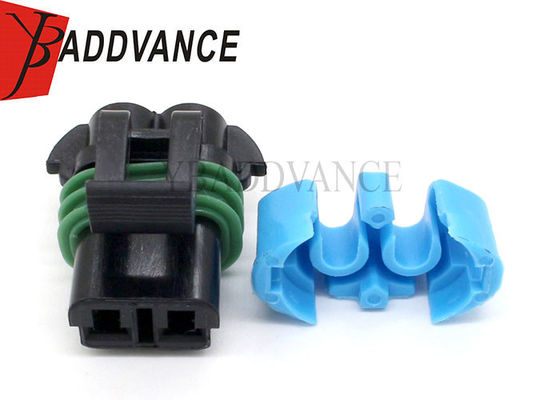

15300027 15363982 2 Pin Metri-Pack 280 Series Receptacle Connector
Description
2 Pin Metri-Pack 280 Series Receptacle Connector
Width: 25.2 mm
Height : 25 mm
Length : 29.9mm
Matching Product: 15300002
Series: Metri-Pack 280 Sealed
Current Rating: 30A
Operating Temperature:-40°C to +125°C (-40°F to 257°F)
It have a low energy, low voltage capability
Metri-Pack 280 female connectors with triple rib silicone rubber seals for environmental protection and a standard ISO 2.8mm configuration.
Specification
|
Item name |
15300027 15363982 2 Pin Metri-Pack 280 Series Receptacle Connector |
| P/N | 15300027 15363982 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
2 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 2 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |
