Product Details:
Payment & Shipping Terms:
|
P/N: | DT04-3P-E008 | Series: | DT Series |
---|---|---|---|
Gender: | Female | Required Wedgelock: | W3S |
Positions: | 3 | Wedge Lock Part#: | WM8S |
Holds Pin/Socket: | Socket | Mounting Type: | Cable |
Sealing: | IP66 | Wire Size (AWG): | 14, 16, 18, 20 |
High Light: | deutsch dt series connectors,te connectivity deutsch connectors |
3 Pin Male DT Series Pin Contacts Deutsch Waterproof Connectors DT04-3P-E008
Description
3 Pin Male DT Series deutsch connector Kits included the following parts:
Accepts Size 16 Solid Contacts or Stamped and Formed Contacts
1 X male Housing
1 X wedge lock
3 X male terminals
1 X Seal
Specification
Item name |
Deutsch Waterproof Connectors |
P/N | DT04-3P-E008 |
Wire Size |
14-20AWG |
Operating Temperature range |
-40℃~125℃ |
Insulation resistance |
100M Min. |
MOQ |
100 units/lot |
Key words |
3 Pin male deutsch connector |
Design Tooling |
Sending us samples or drawing to design it |
Delivery Time |
About 5-8 work days |
Sealed/Unsealed |
sealed |
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
The number of hole | 3 Way |
Color | Gray |
Warranty | 1 year |
Gross Weight | 1.5 kgs/100 units |

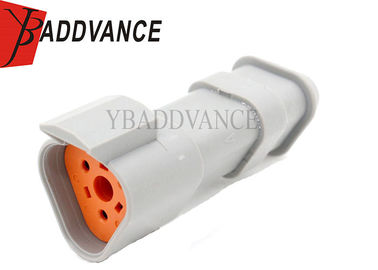

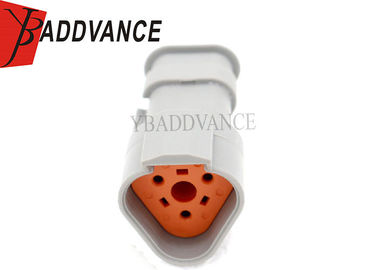

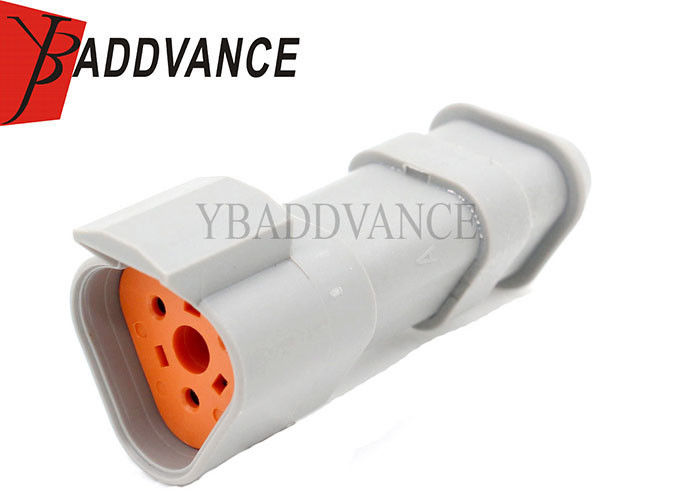

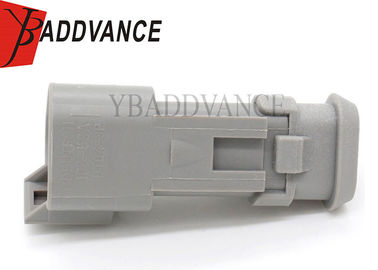

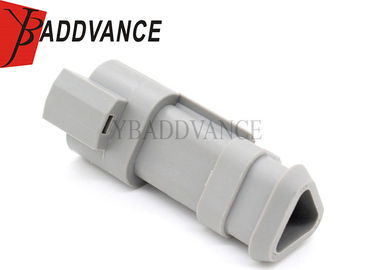

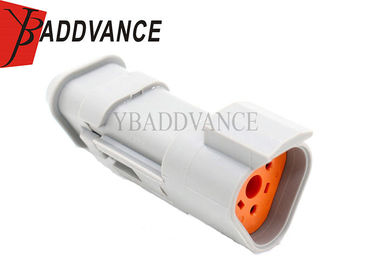

Product Picture Details
