Home ProductsFEP Automotive Connectors

3 Way 3 Pin Male Connector / Plug Wire Connectors 1J0973803 For VW AUDI Skoda

Certification
China Xi'An YingBao Auto Parts Co.,Ltd certification
I'm Online Chat Now

3 Way 3 Pin Male Connector / Plug Wire Connectors 1J0973803 For VW AUDI Skoda

3 Way 3 Pin Male Connector / Plug Wire Connectors 1J0973803 For VW AUDI Skoda
3 Way 3 Pin Male Connector / Plug Wire Connectors 1J0973803 For VW AUDI Skoda

Large Image :  3 Way 3 Pin Male Connector / Plug Wire Connectors 1J0973803 For VW AUDI Skoda

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: 1J0973803

Payment & Shipping Terms:

Minimum Order Quantity: 100 UNITS
Price: negotiation
Packaging Details: Inside packing:100 units/lot put into bags. Outside packing:carton 5 layers.
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,paypal,credit card
Supply Ability: 50,000 units/month
Detailed Product Description
Part-No.: 1J0973803 Mates With: 3D0973703
Gender: Male Length: 30 Cm
Application: Fit For VW Audi Number Of Positions: 3 Pin
Sealed/Unsealed: Sealed Series: 1.5mm Series
Color: Black Number Of Row: 1
High Light:

automotive headlight connectors

,

car headlight connector

3-Way 3 Pins Male Connector Contact Housing Plug Wire 1J0973803 For VW AUDI Skoda


Description

3 Way sealed male Connector kit for retrofitting and repair and fit for volkswagen and Audi.
This part come with the following types:
1 x black female housing
3 x female terminal
3 x rubber seals

Application:Fit for AUDI/ VW /SEAT /SKODA


Specification


Product Name 3 pin male connector for VW
VW OE NO. 1J0973803
Application For VW
Gender Male
Sealed/Unsealed Sealed
Material PBT
Quality Control  All goods will be 100% inspected before shipment
Color Black
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 150
Contact resistance Initial
5mΩ Max.
after durability tests
8mΩ Max.
Leak current 10μA Max.
Insulation resistance 100MΩ Min.
Sample We can provide you samples before place an order
Including Connector housing,terminals,rubber seals
Main products Electrical Connectors,wire harnesses and fuel injector repair kits..
Delivery Time About 3-7 days
Replacement Brand TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on..
Design Ability Please send us drawing or samples to design OEM&ODM
Market Germany,Finland,UK,USA,CANADA,ITALY and so on...
Gross weight 1.5kgs/100 pieces
Shipping express  DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL





Hot products


Deutsch Connector Gender Pin number
DTM04-12P Male Connector 12 Pin
DT04-3S-E008 Female Connector 3 Pin
HD16-3-16S Female Connector 3 Pin
DT04-3P-E008 Male Connector 3 Pin
DTM06-2S-EE03 Female Connector 2 Pin
DJ7022Q-1.5-21 Female Connector 2 Pin
DTM06-12SB Female Connector 12 Pin
DTP06-4S Female Connector 4 Pin
So on.. ... ...





More details about pictures

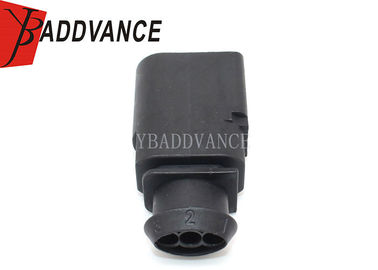

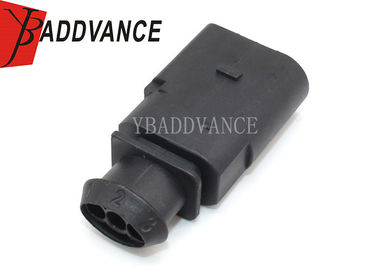

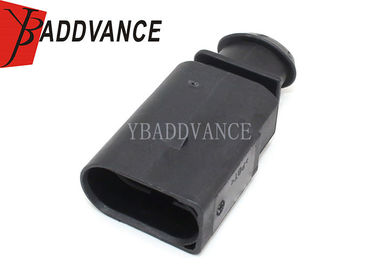

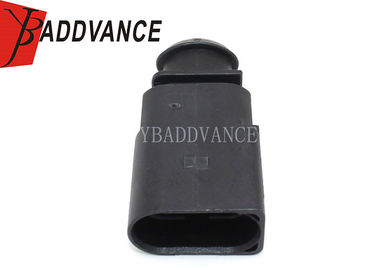

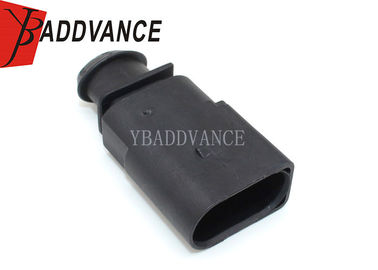

3 Way 3 Pin Male Connector / Plug Wire Connectors 1J0973803 For VW AUDI Skoda 0
