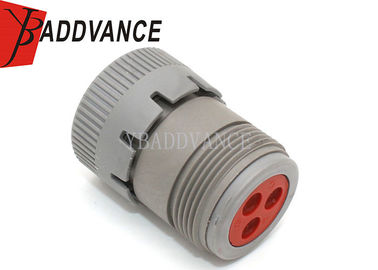

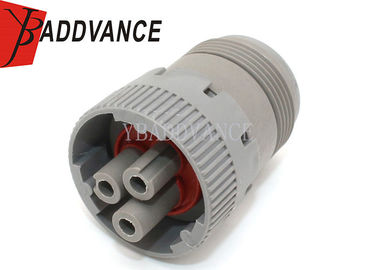

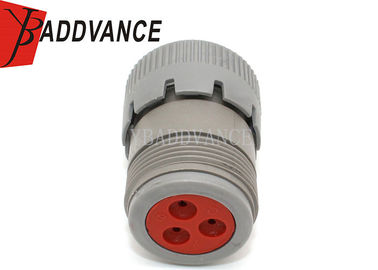

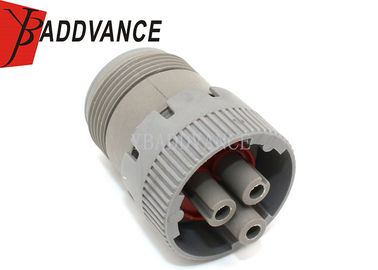

3 Way Female Plug Kits X5 Deutsch Automotive Connectors 1908900 HD16-3-16S

Large Image : 3 Way Female Plug Kits X5 Deutsch Automotive Connectors 1908900 HD16-3-16S

Product Details:

Place of Origin:	China(mainland)
Brand Name:	YBADDVANCE
Certification:	ISO9001
Model Number:	HD16-3-16S 1908900 190-8900

Payment & Shipping Terms:

Minimum Order Quantity:	100 units
Price:	Negotiation
Packaging Details:	Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
Delivery Time:	About 5-8 work days
Payment Terms:	T/T, Western Union,PayPal , credit card
Supply Ability:	50,000 units/moth

Contact Now

Detailed Product Description

Color:	Grey	P/N:	HD16-3-16S 1908900 190-8900
Martial:	PBT/PA66	Type:	Automotive Connector
Feature:	Sealed	Way:	3 Hole
Gender:	Female	HS Code:	8536909000
WARRANTY:	1 Year	PLACE OF ORIGIN:	Shaanxi,China
High Light:	deutsch waterproof connectors , te connectivity deutsch connectors

8T8731 3 Way Female Plug Kits X5 Deutsch Connector 1908900 190-8900 HD16-3-16S

Description

8T8731 3 Way Female Plug Kits X5 Deutsch Connector

Wire Gauge Range: 20 AWG to 14 AWG
Height: 40.87 mm
Length: 27.14 mm
Width: 27.14 mm
Attachment Hole Diameter: 1.5 mm

HD10 Range-A range of Heavy Duty 13Amp and 25Amp circular sealed connectors.

Properly wired and mated the connection will withstand immersion under three feet of water without loss of electronic qualities or leakage.

From Deutsch, this HD 10 Series cable mount connector offers a sturdy and versatile plug for heavy duty connections with corresponding HD 10 receptacles. Available in 3, 6 and 9 pole contact arrangements, this HD 10 Series plug is very well suited to industrial applications.

Specification

Item name	8T8731 3 Way Female Plug Kits X5 Deutsch Connector 1908900 190-8900 HD16-3-16S
P/N	1908900 190-8900 HD16-3-16S
Wire Size	18-22AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	3 pin Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	Sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	3 way
Color	Grey
Warranty	1 year
Application	Automoive Motorcycles
