Product Details:
Payment & Shipping Terms:
|
| Color: | Grey | P/N: | HD14-3-96P 1908900 |
|---|---|---|---|
| Martial: | PBT/PA66 | Type: | Automotive Connector |
| Feature: | Sealed | Way: | 3 Hole |
| Gender: | Female | HS Code: | 8536909000 |
| WARRANTY: | 1 Year | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | deutsch waterproof connectors,te connectivity deutsch connectors |
||
Deutsch HD Series 3 Pin Female Connector HD14-3-96P 1908900
Description
Deutsch HD Series 3 Pin Female Connector HD14-3-96P 1908900
Specified assembly and wiring are accepted
Welcome to contact us for more information
DEUTSCH HD10 housings are environmentally sealed, thermoplastic, and cylindrical connectors with a coupling ring for mating.
HD10 connectors are available with arrangements from 3 to 9 cavities and accept size 4, 12, or 16
Specification
|
Item name |
Deutsch HD Series 3 Pin Female Connector HD14-3-96P 1908900 |
| P/N | HD14-3-96P 1908900 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
Sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 way |
| Color | Grey |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

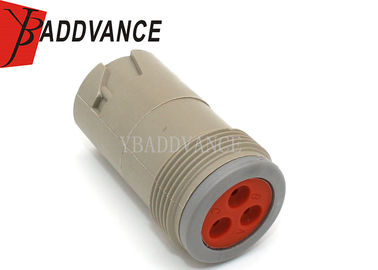

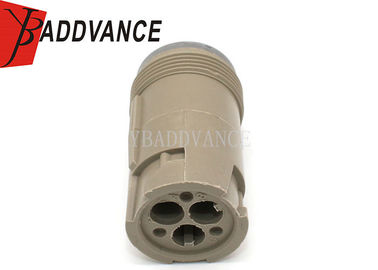

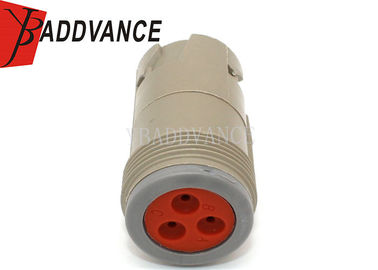

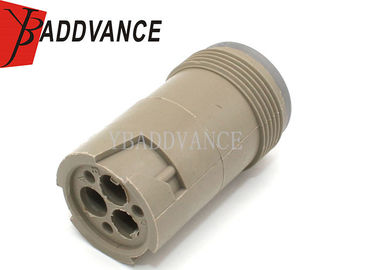

Product Picture Details
