Product Details:
Payment & Shipping Terms:
|
| P/N: | DTP06-2S | Martial: | PBT/PA66 |
|---|---|---|---|
| HS Code: | 8536909000 | Gender: | Female |
| Color: | Grey | Type: | Sealed Connector |
| Feature: | Waterproof | WARRANTY: | 1 Year |
| Way: | 2 Hole | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | deutsch dt series connectors,te connectivity deutsch connectors |
||
DTP06-2S 2 Hole DTP Deutsch Female Connector With Secondary Lock
Description
2 Hole DTP Deutsch Female Connector With Secondary Lock
Mating Pin Diameter : 2.5 mm
Centerline (Pitch) : 6.7 mm
Wire Size : 10AWG-14 AWG
Required Wedgelock: WP-2S
DEUTSCH DTP housings are available in 2 and 4 pin counts and use size 12 DEUTSCH contacts, each with 25-amp continuous capacity.
Specification
|
Item name |
DTP06-2S 2 Hole DTP Deutsch Female Connector With Secondary Lock |
| P/N | DTP06-2S |
|
Wire Size |
10-14AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
2 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 2 way |
| Color | Grey |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

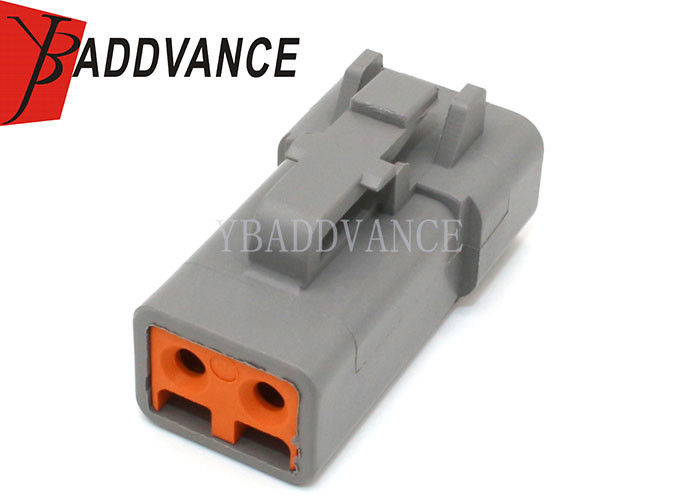

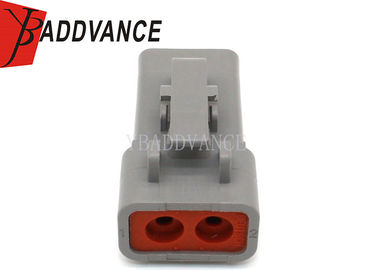

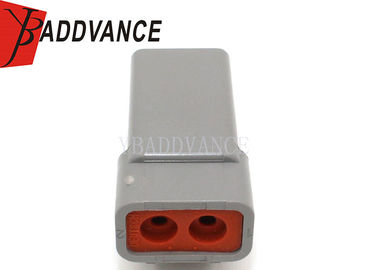

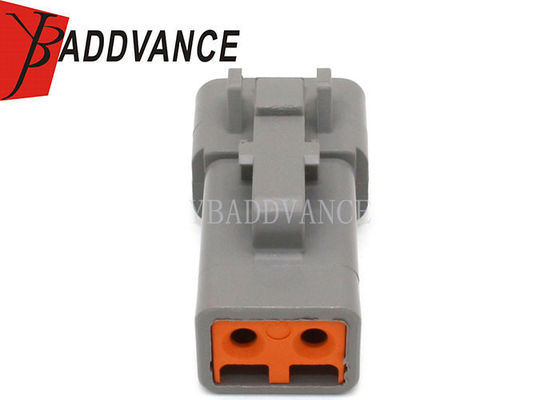

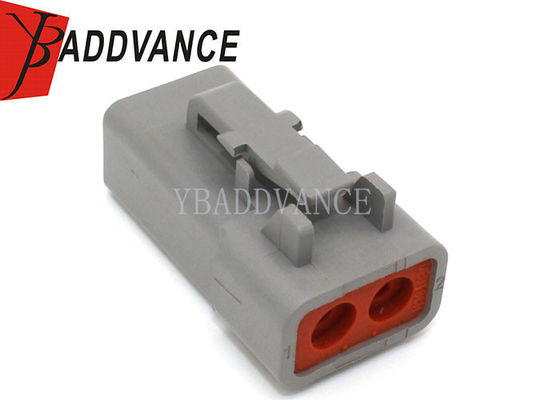

Product Picture Details
