12015791 1 Hole 2 Way Female Connector / Tower Waterproof Electrical Connectors

Certification
China Xi'An YingBao Auto Parts Co.,Ltd certification
I'm Online Chat Now

12015791 1 Hole 2 Way Female Connector / Tower Waterproof Electrical Connectors

12015791 1 Hole 2 Way Female Connector / Tower Waterproof Electrical Connectors
12015791 1 Hole 2 Way Female Connector / Tower Waterproof Electrical Connectors 12015791 1 Hole 2 Way Female Connector / Tower Waterproof Electrical Connectors 12015791 1 Hole 2 Way Female Connector / Tower Waterproof Electrical Connectors 12015791 1 Hole 2 Way Female Connector / Tower Waterproof Electrical Connectors 12015791 1 Hole 2 Way Female Connector / Tower Waterproof Electrical Connectors

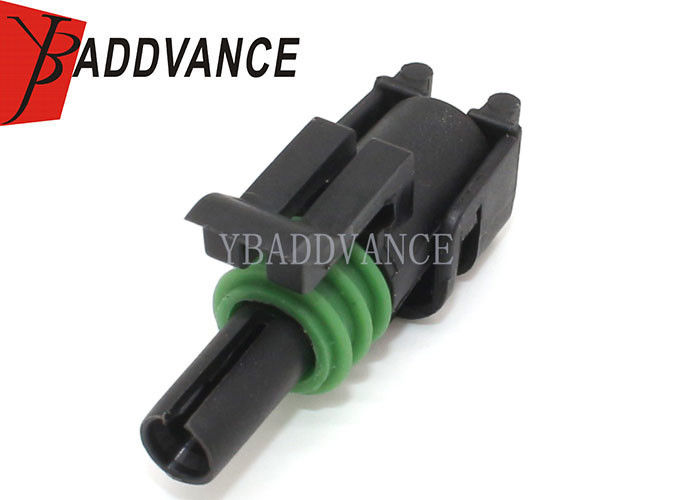

Large Image :  12015791 1 Hole 2 Way Female Connector / Tower Waterproof Electrical Connectors

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: 12015791

Payment & Shipping Terms:

Minimum Order Quantity: 100 units
Price: Negotiation
Packaging Details: Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,PayPal , credit card
Supply Ability: 50,000 units/moth
Detailed Product Description
P/N: 12015791 Martial: PBT/PA66
HS Code: 8536909000 Gender: Female
Color: Black Type: Sealed Connector
Feature: Waterproof WARRANTY: 1 Year
Way: 1 Hole PLACE OF ORIGIN: Shaanxi,China
High Light:

coil pack connector

,

weather pack electrical connectors

12015791 1 Hole Female Weather Pack Tower Waterproof Connector





Description



1 Hole Female Weather Pack Tower Waterproof Connector

Depth:40.5 mm
Height:20.8 mm
Width: 13.6 mm

Each connection requires a male and female terminal, a seal for each terminal, and a male and female housing.

Pick terminals that match your wire size, then choose a housing that offers the number of connections you'd like to make.

All terminals work with all housings, regardless of wire size.

Terminals require two crimps (terminal to wire strands, terminal to seal to wire insulation). A proper crimping tool is required.









Specification



Item name

12015791 1 Hole Female Weather Pack Tower Waterproof Connector
P/N 12015791

Wire Size

18-22AWG

Operating Temperature range

-40℃~125℃

Insulation resistance

100M Min.

MOQ

100 units/lot
Key words

1 pin Sealed Connector

Design Tooling

Sending us samples or drawing to design it

Delivery Time

About 5-8 work days

Sealed/Unsealed

sealed

Leak current

Initial50kPa Min.after durability tests30kPa Min.
The number of hole  1 way
Color  Black
Warranty 1 year
Application Automoive Motorcycles









Product Picture Details

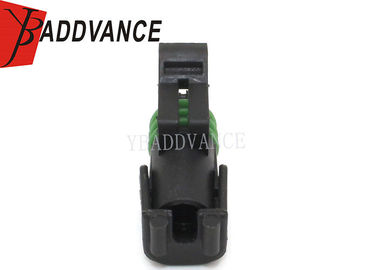

12015791 1 Hole 2 Way Female Connector / Tower Waterproof Electrical Connectors 0

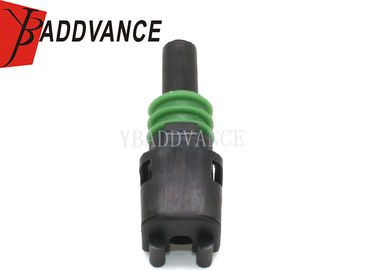

12015791 1 Hole 2 Way Female Connector / Tower Waterproof Electrical Connectors 1

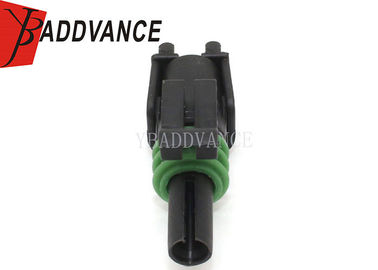

12015791 1 Hole 2 Way Female Connector / Tower Waterproof Electrical Connectors 2
