Product Details:
Payment & Shipping Terms:
|
| P/N: | 1-1419168-1 1-1419168-2 1-1419168-3 | Martial: | PBT/PA66 |
|---|---|---|---|
| Color: | Black | Gender: | Male |
| Feature: | Waterproof | Type: | Sealed Connector |
| HS Code: | 8536909000 | WARRANTY: | 1 Year |
| Way: | 6 Hole | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | tyco automotive connectors,tyco superseal connectors |
||

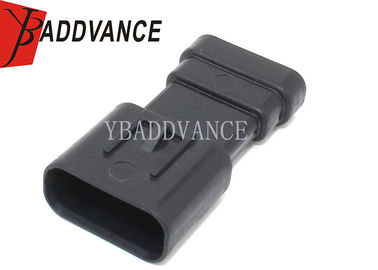

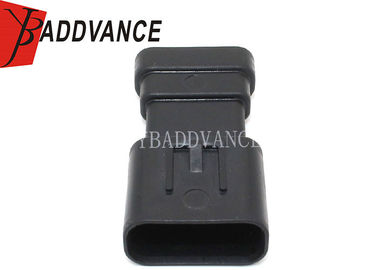

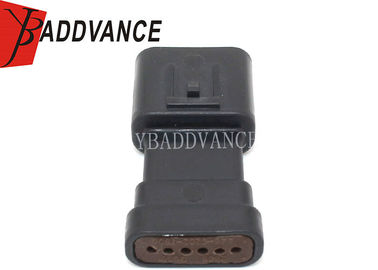

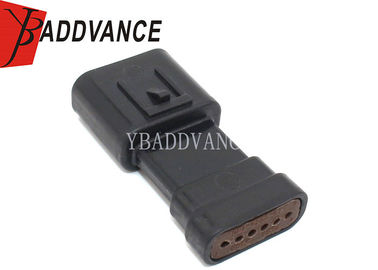

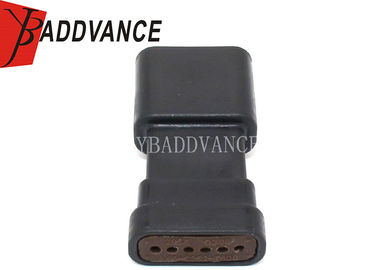

1-1419168-1 1-1419168-2 1-1419168-3 6 Pin Male TE Connectivity Connector
Description
6 Pin Male TE Connectivity Connector
1 Row ,6 Way
Other part number : 1-1419168-1, 1-1419168-2, 1-1419168-3, 1-1419168-4, 1419168-7, and 1419168-8 410021-2-150
Mating Connector : 1-1419168-2
Terminal part number 523039
If you need male and female connector , it will be more cost effective
This connector is commonly found on Ford MAF sensors, MAZDA drive-by-wire sensors, and other vehicles.
Specification
|
Item name |
1-1419168-1 1-1419168-2 1-1419168-3 6 Pin Male TE Connectivity Connector |
| P/N | 1-1419168-1 1-1419168-2 1-1419168-3 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
6 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 6 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |
