Product Details:
Payment & Shipping Terms:
|
| Series: | RH Connectors | Part Number: | 7283-8853-30 |
|---|---|---|---|
| Number Of Contact: | 4 | Tab Width Mm(inches): | 0.64(025) |
| Number Of Way: | 4 Way | Application: | For Infiniti |
| Male Or Female: | Female | Length: | 23.75mm |
| Width: | 26.12mm | High: | 18.90mm |
| High Light: | rh connector,waterproof auto electrical connectors |
||

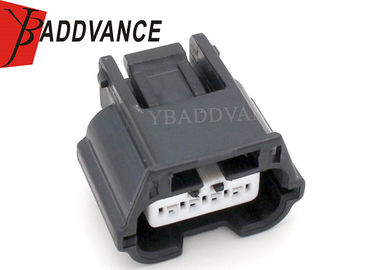

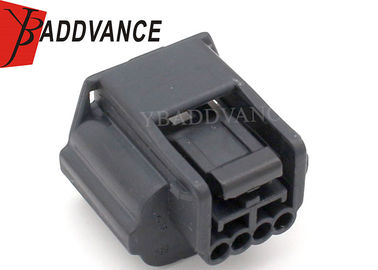

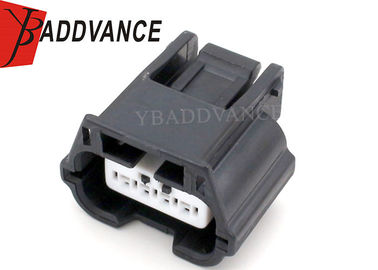

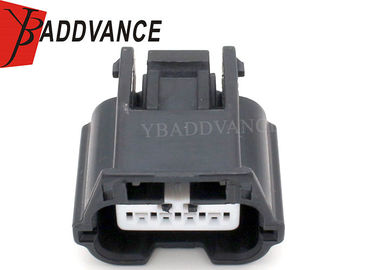

Sealed Female 4 Pin Locking Connector For Infiniti 7283-8853-30
Description
4 Pin female sensor connectors from YBADDVANCE supplier
Application:Fit For Infiniti,Nissan, & Others
Tire Pressure, Antenna, Headlight - Leveling Motor,HID Light, Front Camera& Others
This connector with locking,connector housing,socket contact and wire seals together.
Specification
|
Item name |
4 Pin Locking RH connector housing |
| Part Number | 7283-8853-30 |
|
Wire Gauge |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Connection Type |
Wire to Wire Wire to Board Wire to Device |
|
Number of Poles |
4 Way |
| Key words |
4 Pin Locking connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
Sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| Number of Rows | 1 Row |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |
Product Picture Details
