Kum PB535-06027 Receptacle Electrical 6 Pin Female Connector For Toyota

Certification
China Xi'An YingBao Auto Parts Co.,Ltd certification
I'm Online Chat Now

Kum PB535-06027 Receptacle Electrical 6 Pin Female Connector For Toyota

Kum PB535-06027 Receptacle Electrical 6 Pin Female Connector For Toyota
Kum PB535-06027 Receptacle Electrical 6 Pin Female Connector For Toyota Kum PB535-06027 Receptacle Electrical 6 Pin Female Connector For Toyota Kum PB535-06027 Receptacle Electrical 6 Pin Female Connector For Toyota Kum PB535-06027 Receptacle Electrical 6 Pin Female Connector For Toyota Kum PB535-06027 Receptacle Electrical 6 Pin Female Connector For Toyota

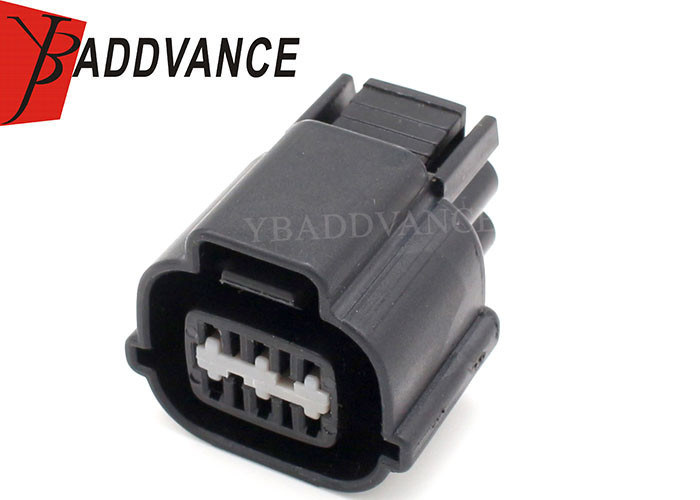

Large Image :  Kum PB535-06027 Receptacle Electrical 6 Pin Female Connector For Toyota

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: 6189-7040

Payment & Shipping Terms:

Minimum Order Quantity: 100 units
Price: Negotiation
Packaging Details: Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,PayPal , credit card
Supply Ability: 50,000 units/moth
Detailed Product Description
P/N: 6189-7040 Martial: PBT/PA66
Color: Black Gender: Female
Type: Sumitomo Connector Feature: Waterproof
HS Code: 8536909000 Way: 6 Hole
High Light:

sumitomo 4 pin connector

,

sumitomo terminal connector

Kum PB535-06027 Receptacle Electrical 6 Pin Female Connector For Toyota





Description



6 Hole Female Sumitomo HV/HVG Sealed Series ConnectorSeries: Micro Quadlok System

2 Row 6 Way

Pitch: 1.0 mm

Height :21.4 mm

Width :23.4mm

Length : 26.1 mm

Mating connector : 6188-4908

Series : HV/HVG Sealed

High quality with reasonable price









Specification



Item name

6189-7040 6 Hole Female Sumitomo HV/HVG Sealed Series Connector
P/N 6189-7040

Wire Size

18-22AWG

Operating Temperature range

-40℃~125℃

Insulation resistance

100M Min.

MOQ

100 units/lot
Key words

6 pin waterproof Connector

Design Tooling

Sending us samples or drawing to design it

Delivery Time

About 5-8 work days

Sealed/Unsealed

sealed

Leak current

Initial50kPa Min.after durability tests30kPa Min.
The number of hole  6 way
Color  Black
Warranty 1 year
Application Automotive Motorcycles

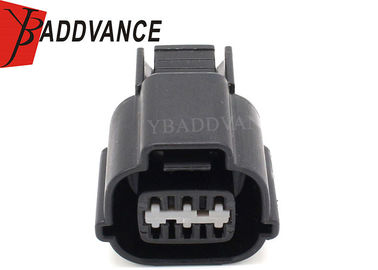

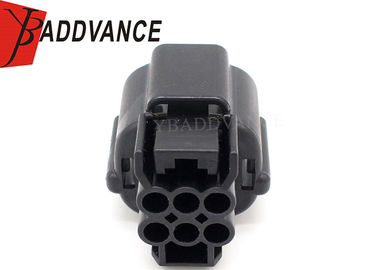

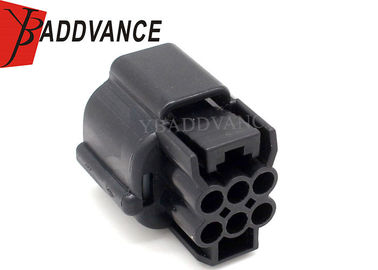

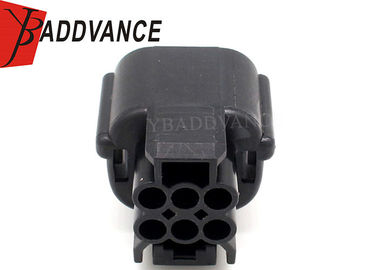

Product Picture Details



Kum PB535-06027 Receptacle Electrical 6 Pin Female Connector For Toyota 0

Kum PB535-06027 Receptacle Electrical 6 Pin Female Connector For Toyota 1

Kum PB535-06027 Receptacle Electrical 6 Pin Female Connector For Toyota 2
