Product Details:
Payment & Shipping Terms:
|
| Housing P/N: | 6189-1129 | Terminal P/N: | 8100-3455 |
|---|---|---|---|
| Sealed/Unsealed: | Sealed Connector | Male/Female: | Female |
| Martial: | PBT | Application: | For Toyota |
| Type: | Waterproof Connectors | Color: | Black |
| WARRANTY: | 1 Year | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | sumitomo 2 pin connector,sumitomo 4 pin connector |
||

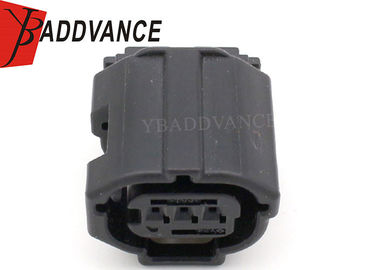

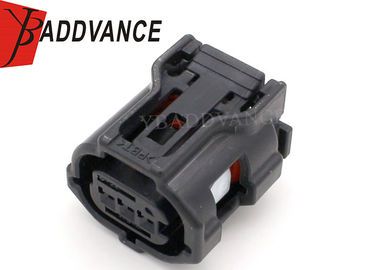

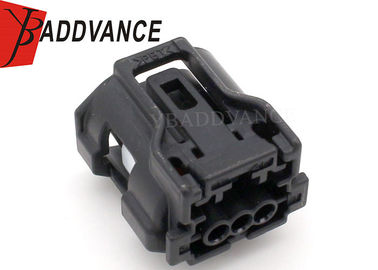

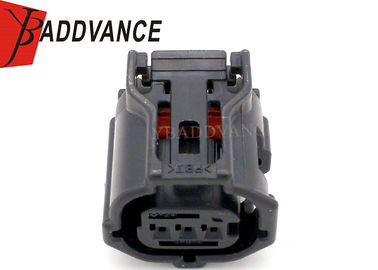

3 Pin 3 Way Sumitomo TS 025 (.64mm) Female Sealed Connector For Toyota 6189-1129
Description
3 pin TS 025 sealed Connector is fit for Headlight Lamp / Camshaft Sensors and this connector
come with Terminals and seals
Terminals Size:
Terminals Fit wire size .2 - .5 mm (20-24 AWG)
Application:Fit for toyota Camshaft Sensors
What's included:
1 X Connector Housing
3 X Female Terminals
3 X Wire seals
Specification
|
Item name |
3 pin TS 025 Female Connector |
| Part Number | 6189-1129 |
|
Wire Size |
24-20AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 Pin sealed connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 Hole |
| Color | Black |
| Warranty | 1 year |
| Application | Automotive Motorcycles |
