Xi'An YingBao Auto Parts Co.,Ltd
-------------------------- Professional Supplier
Product Details:
Payment & Shipping Terms:
|
| P/N: | FW-C-2F-B | Martial: | PBT/PA66 |
|---|---|---|---|
| Color: | Black | Gender: | Female |
| Way: | 2 Hole | Feature: | Waterproof |
| HS Code: | 8536909000 | Type: | Furukawa Connector |
| High Light: | automotive waterproof electrical connectors,crankshaft sensor connector |
||

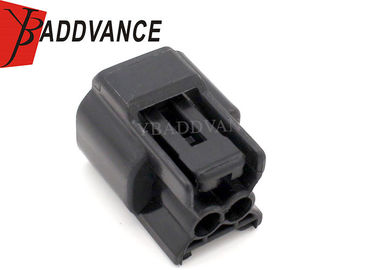

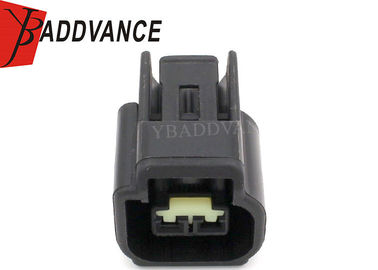

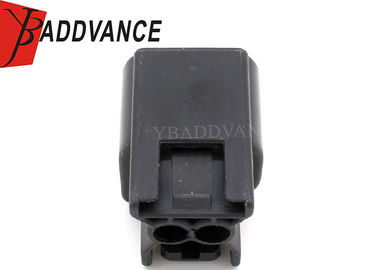

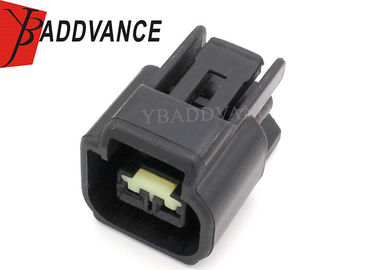

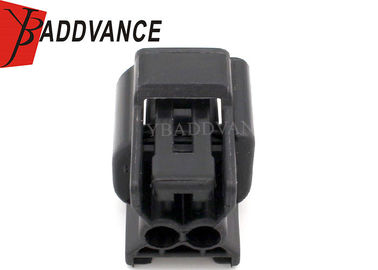

FW-C-2F-B 2 Position Nippo Denso Ignition Coil Connector Fit For Ford
Description
2 Position Furukawa FW 090 Ignition Coil Connector for Ford
Height :18.5mm
Width : 19.3mm
Length : 26 mm
Mating connector : FW-C-2M-B
For wire sizes:0.5mm - 1.25mm (16 - 20 AWG)
It is Furukawa Common D enso/F ord COP ignition coil Connector
Specification
|
Item name |
FW-C-2F-B 2 Position Furukawa FW 090 Ignition Coil Connector for Ford |
| P/N | FW-C-2F-B |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
2 pin waterproof Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 2 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automotive Motorcycles |
Product Picture Details
