Product Details:
Payment & Shipping Terms:
|
| P/N: | BC7809 | Martial: | PBT/PA66 |
|---|---|---|---|
| Color: | Black | Gender: | Female |
| Way: | 4 Hole | Type: | AMP Connector |
| HS Code: | 8536909000 | Feature: | Waterproof |
| High Light: | tyco superseal connectors,tyco circular connectors |
||
4 Pin Female Auto Electric TE Connectivity Connector with Lock
Description
4 Pin Female Auto Electric TE Connectivity Connector with Lock
TE Connectivity Junior Power Timer Connector Housings with Secondary Locking
Junior Power timer receptacle style connector housings for socket contacts with a 5mm centerline.
They are ideal for many applications including car, marine, lorry, motorcycle, race car, caravan etc. and are connected and disconnected quickly and safely.
Specification
|
Item name |
4 Pin Female Auto Electric TE Connectivity Connector with Lock |
| P/N | BC7809 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
4 pin waterproof Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 4 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automotive Motorcycles |

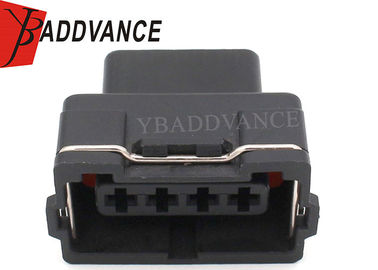

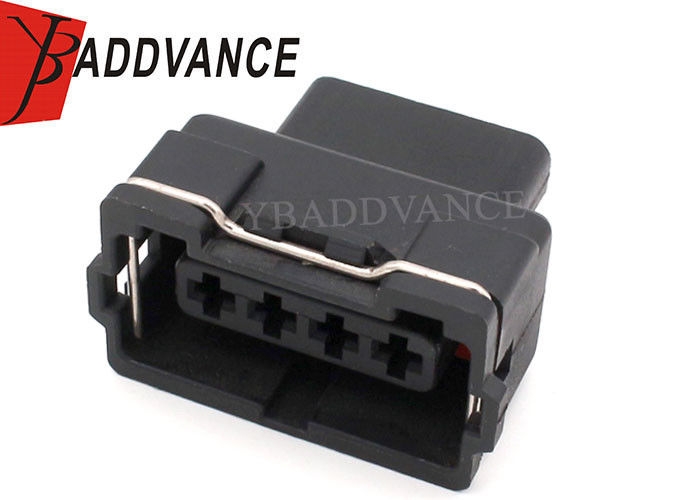

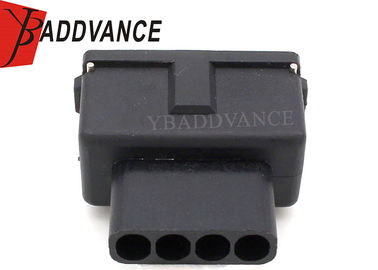

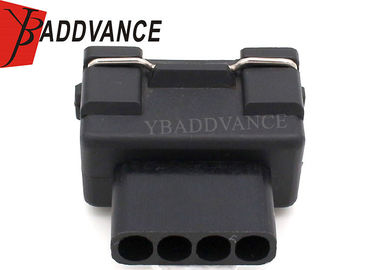

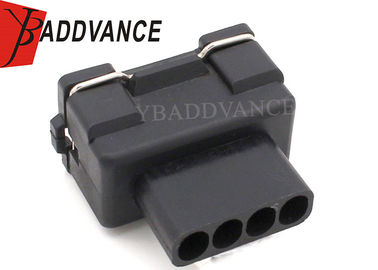

Product Picture Details
