6 Pin Female TE Connectivity JPT Series Housing Connector with Lock

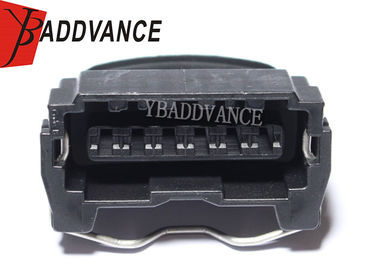

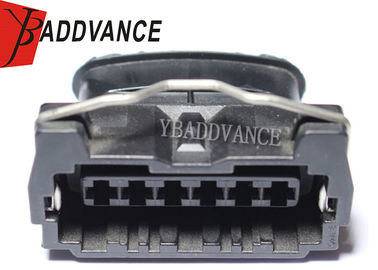

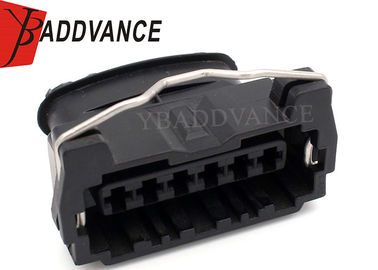

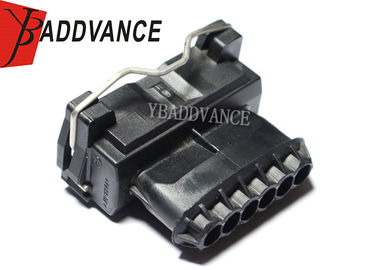

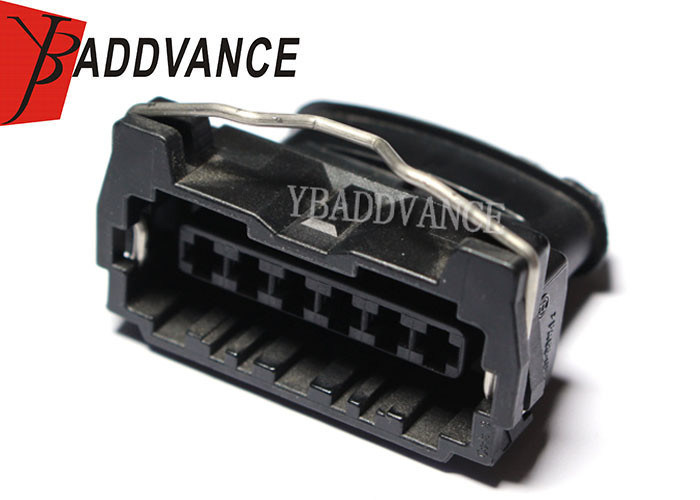

Large Image : 6 Pin Female TE Connectivity JPT Series Housing Connector with Lock

Product Details:

Place of Origin:	China(mainland)
Brand Name:	YBADDVANCE
Certification:	ISO9001
Model Number:	BC7061-3.5-21

Payment & Shipping Terms:

Minimum Order Quantity:	100 units
Price:	Negotiation
Packaging Details:	Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
Delivery Time:	About 5-8 work days
Payment Terms:	T/T, Western Union,PayPal , credit card
Supply Ability:	50,000 units/moth

Contact Now

Detailed Product Description

P/N:	BC7061-3.5-21	Martial:	PBT/PA66
Color:	Black	Gender:	Female
Way:	6 Hole	Feature:	Waterproof
HS Code:	8536909000	Type:	AMP Connector
High Light:	tyco automotive connectors , tyco circular connectors

6 Pin Female TE Connectivity JPT Series Housing Connector with Lock

Description

6 Pin Female TE Connectivity JPT Series Housing Connector with Lock

Series: Junior Power Timer

The steel top spring provides additional locking protection

Orientation:Straight

Termination:Crimp

Mating Tab Width: 5 mm

Housing Material: Polyamide

Mount: Free Hanging , Cable

They are ideal for many applications including car, marine, lorry, motorcycle, race car, caravan etc. and are connected and disconnected quickly and safely.

Specification

Item name	6 Pin Female TE Connectivity JPT Series Housing Connector with Lock
P/N	BC7061-3.5-21
Wire Size	18-22AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	6 pin waterproof Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	6 way
Color	Black
Warranty	1 year
Application	Automotive Motorcycles
