Product Details:
Payment & Shipping Terms:
|
| P/N: | 282193-1 | Martial: | PBT/PA66 |
|---|---|---|---|
| Color: | Black | Gender: | Female |
| Way: | 5 Hole | Feature: | Waterproof |
| HS Code: | 8536909000 | Type: | AMP Connector |
| High Light: | tyco automotive connectors,tyco superseal connectors |
||
282193-1 5 Hole TE Connectivity JPT Series Connector with Secondary Locking
Description
5 Hole TE Connectivity JPT Series Connector with Secondary Locking
This timer receptacle is suitable for use with junior power timer socket contacts.
Pitch : 5 mm
Height :24.5mm
Width : 40.4mm
Length : 38.2 mm
IP rating: IP54K
Mounting Type: Free Hanging (In-Line)
Junior Power timer receptacle style connector housings for socket contacts with a 5mm centerline
Specification
|
Item name |
282193-1 5 Hole TE Connectivity JPT Series Connector with Secondary Locking |
| P/N | 282193-1 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
5 pin waterproof Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 5 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automotive Motorcycles |

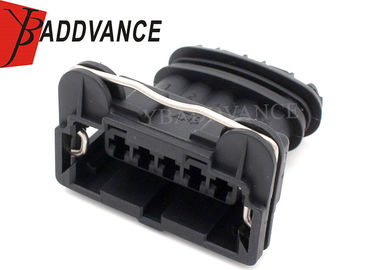

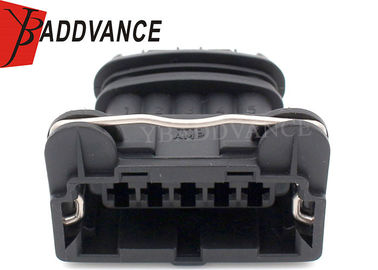

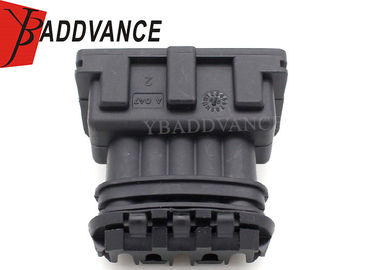

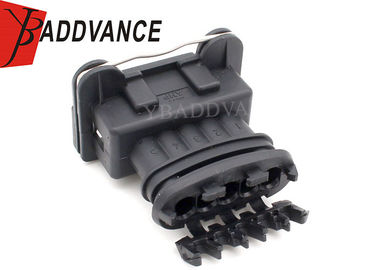

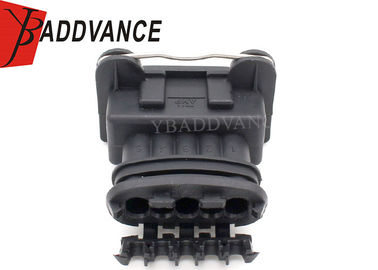

Product Picture Details
